2012 Jeep Wrangler JK Factory Service Manual 23 - Body

PANEL, Cowl Trim

REMOVAL

REMOVAL

  1. Position aside the lower B-pillar trim as necessary to gain access to the cowl trim, (Refer to 23 - Body/Interior/PANEL, B-Pillar Trim - Removal) .

    2.

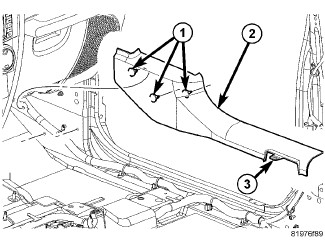

  2. Remove the push pin fastener (3) and separate the retaining clips (1).

    3.
  3. Remove the cowl trim (2).

    4.

INSTALLATION

INSTALLATION

  1. Position the trim (2) into place and seat the push pin fasteners (1) fully.

    2.
  2. Install the push pin fastener (3).

    3.
  3. Position the lower B-pillar trim back into place, (Refer to 23 - Body/Interior/PANEL, B-Pillar Trim - Installation) .

    4.
