2012 Jeep Wrangler JK Factory Service Manual 09 - Engine, 3.6L

PICK-UP, Oil Pump

REMOVAL

REMOVAL

  1. Disconnect and isolate the negative battery cable.

    2.
  2. Remove the lower oil pan (Refer to 09 - Engine/Lubrication/PAN, Oil - Removal)

    3.
  3. Remove the bolt (3) from the oil pump pick-up tube support bracket.

    4.

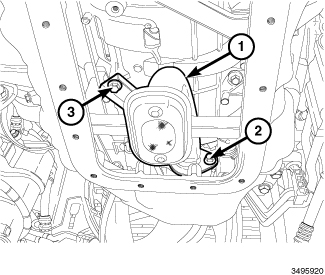

  4. Remove the bolt (2) from the oil pick-up tube and remove the oil pick-up tube (1) from the oil pump.

    5.

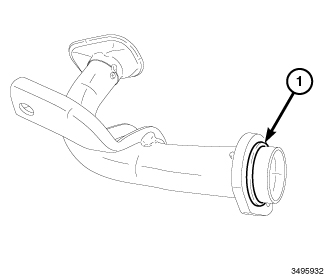

  5. Remove and discard the O-ring seal (1) from the oil pick-up tube.

    6.

INSTALLATION

INSTALLATION

  1. Lightly lubricate the new O-ring seal (1) with engine oil and install on the oil pick-up tube.

    2.
  2. Install the oil pick-up tube (1) with two bolts (2 and 3). Tighten the bolts to 12 N·m (106 in. lbs.).

    3.
  3. Install the lower oil pan (Refer to 09 - Engine/Lubrication/PAN, Oil - Installation)

    4.
  4. If removed, install the oil filter and fill the engine crankcase with the proper oil to the correct level (Refer to 09 - Engine/Lubrication/OIL - Standard Procedure)

    5.
  5. Connect the negative battery cable and tighten nut to 5 N·m (45 in. lbs.).

    6.
  6. Start and run the engine until it reaches normal operating temperature.
