SENSOR, Oil Pressure

DESCRIPTION

DESCRIPTION

The oil pressure sending unit uses three circuits. They are:

• A signal circuit to the Powertrain Control Module (PCM).
• A sensor ground circuit through the PCM.
• A 5 volt reference circuit from the PCM.

The oil pressure sending unit returns a voltage signal back to the PCM relating oil pressure. Ground for the sensor is supplied by the PCM.

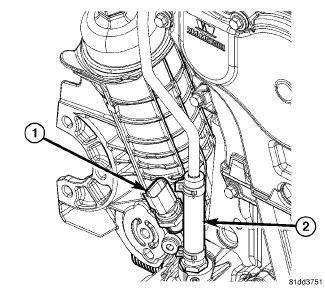

The oil pressure switch (1) is located on the right side of the engine block. The switch screws into the engines main oil gallery.

REMOVAL

REMOVAL

1. Disconnect the negative battery cable.

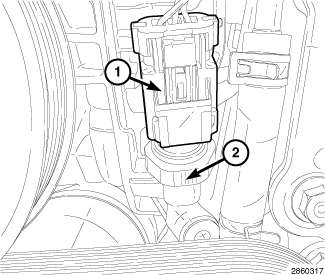

2. Disconnect the oil pressure switch harness connector (1).


3. Remove the oil pressure switch (2).




INSTALLATION

INSTALLATION

1. Install the oil pressure switch (2). Tighten to 14 N·m (124 in. lbs.).


2. Connect the oil pressure switch harness connector (1).


3. Connect the negative battery cable.


4. Start engine and check for oil leaks.
