2012 Jeep Wrangler JK Factory Service Manual 24 - Heating and Air Conditioning

DRIER, A/C Receiver

DESCRIPTION

DESCRIPTION

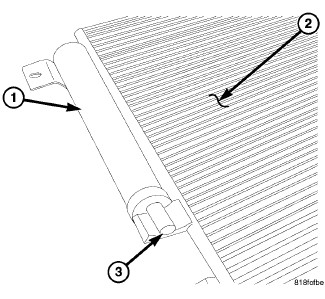

The A/C receiver/drier (1) stores unnecessary refrigerant, filters the refrigerant, helps remove moisture from the refrigerant and retains any refrigerant vapor that may leave the A/C condenser (2) until it becomes a liquid. The A/C receiver/drier is installed on the high-side of the A/C system and is connected directly to the right end of the A/C condenser by a bolt (3). The A/C receiver/drier can be serviced separately from the A/C condenser.

OPERATION

OPERATION

The A/C receiver/drier performs a filtering action to prevent foreign material in the refrigerant from contaminating the A/C expansion valve. Refrigerant enters the A/C receiver/drier as a high-pressure, low temperature liquid. Desiccant inside the A/C receiver/drier absorbs any moisture which may have entered and become trapped within the refrigerant system. In addition, during periods of high demand operation of the A/C system, the A/C receiver/drier acts as a reservoir to store surplus refrigerant.

CAUTION:

The A/C receiver/drier must be replaced if an internal failure of the A/C compressor has occurred . Failure to replace the A/C receiver drier can cause serious damage to the replacement A/C compressor.



NOTE:

Replacement of the refrigerant line O-ring seals and gaskets is required anytime a refrigerant line is disconnected. Failure to replace the rubber O-ring seals and metal gaskets could result in a refrigerant system leak.

The A/C receiver/drier has no serviceable parts except for the O-ring seals. The O-ring seals used on the connections are made from a special type of rubber not affected by R-134a refrigerant. The O-ring seals must be replaced whenever the A/C receiver/drier is removed.

The A/C receiver/drier cannot be repaired and must be replaced if leaking or damaged, or if an internal failure of the A/C compressor has occurred.

REMOVAL

REMOVAL

WARNING:

Refer to the applicable Warnings and Cautions for this system before performing the following operation and . Failure to follow these instructions may result in possible serious or fatal injury.

CAUTION:

The A/C receiver/drier must be replaced if an internal failure of the A/C compressor has occurred . Failure to replace the A/C receiver drier can cause serious damage to the replacement A/C compressor.




NOTE:

Illustration shown with A/C condenser removed from vehicle for clarity.

  1. Disconnect and isolate the negative battery cable.

    2.
  2. Recover the refrigerant from the refrigerant system (Refer to 24 - Heating and Air Conditioning/Plumbing - Standard Procedure) .

    3.
  3. Remove the grille (Refer to 23 - Body/Exterior/GRILLE - Removal) .

    4.
  4. Remove the bolt (3) that secures the A/C receiver/drier (1) to the right side A/C condenser (2).

    5.
  5. Disconnect the A/C receiver/drier from the A/C condenser and remove and discard the O-ring seals.

    6.
  6. Install plugs in, or tape over the opened receiver/drier fittings and the condenser ports.

    7.

INSTALLATION

INSTALLATION

CAUTION:

Be certain to adjust the refrigerant oil level when servicing the A/C refrigerant system . Failure to properly adjust the refrigerant oil level will prevent the A/C system from operating as designed and can cause serious A/C compressor damage.

CAUTION:

The A/C receiver/drier must be replaced if an internal failure of the A/C compressor has occurred . Failure to replace the A/C receiver drier can cause serious damage to the replacement A/C compressor.



NOTE:

When replacing multiple A/C system components, see the Refrigerant Oil Capacities chart to determine how much oil should be added to the refrigerant system (Refer to 24 - Heating and Air Conditioning/Plumbing/OIL, Refrigerant - Standard Procedure) .


NOTE:

If only the A/C receiver/drier is being replaced, add 30 milliliters (1 fluid ounce) of refrigerant oil to the refrigerant system. Use only refrigerant oil of the type recommended for the A/C compressor in the vehicle.


NOTE:

Replacement of the refrigerant line O-ring seals and gaskets is required anytime a refrigerant line is disconnected. Failure to replace the rubber O-ring seals and metal gaskets could result in a refrigerant system leak.



NOTE:

Illustration shown with A/C condenser removed from vehicle for clarity.

  1. Remove the tape or plugs from the receiver/drier fittings and the condenser ports.

    2.
  2. Lubricate new O-ring seals with clean refrigerant oil and install them onto the receiver/drier fittings. Use only the specified O-rings as they are made of a special material for the R-134a system. Use only refrigerant oil of the type recommended for the A/C compressor in the vehicle.

    3.
  3. Connect the receiver/drier (1) to the right end of the A/C condenser (2).

    4.
  4. Install the bolt (3) that secures the receiver/drier to the A/C condenser. Tighten the bolt to 22 N·m (16 ft. lbs.).

    5.
  5. Install the grille (Refer to 23 - Body/Exterior/GRILLE - Installation) .

    6.
  6. Reconnect the negative battery cable.

    7.
  7. Evacuate the refrigerant system (Refer to 24 - Heating and Air Conditioning/Plumbing - Standard Procedure) .

    8.
  8. Add 30 milliliters (1 fluid ounce) of refrigerant oil to the refrigerant system (Refer to 24 - Heating and Air Conditioning/Plumbing/OIL, Refrigerant - Standard Procedure) .

    9.
  9. Charge the refrigerant system (Refer to 24 - Heating and Air Conditioning/Plumbing - Standard Procedure) .

    10.
