2012 Jeep Wrangler JK Factory Service Manual 03 - Differential and Driveline

SHAFT, Drive, Front

REMOVAL

REMOVAL

  1. With vehicle in neutral, position vehicle on hoist.

    2.

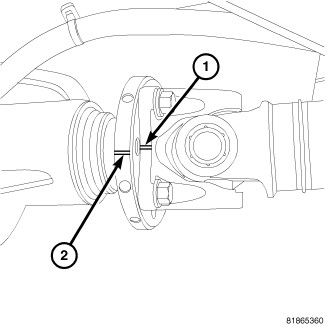

  2. Mark an installation reference line across the front propeller shaft CV joint (1) and transfer case flange (2).

    3.

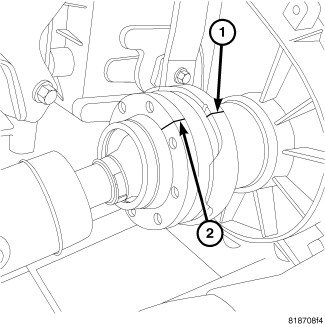

  3. Mark an installation reference line across the front propeller shaft flange (1) and the axle flange (2).

    4.

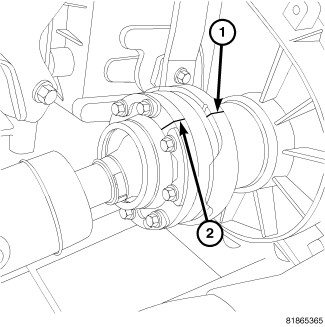

  4. Remove the axle flange (1) bolts (2).

    5.

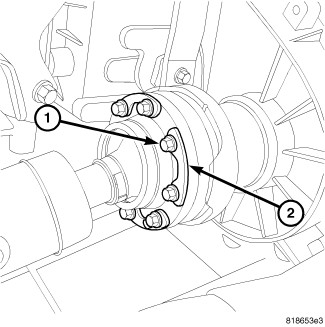

  5. Remove the CV joint bolts (1) and retainers (2).

    6.
  6. Compress the propeller shaft enough to remove the shaft from the flanges.

    7.

INSTALLATION

INSTALLATION

NOTE:

Clean all propeller shaft bolts and apply Mopar® Lock AND Seal Adhesive or equivalent to the threads before installation.

  1. Compress the propeller shaft enough to install the shaft into the axle and transfer case flanges.

    2.

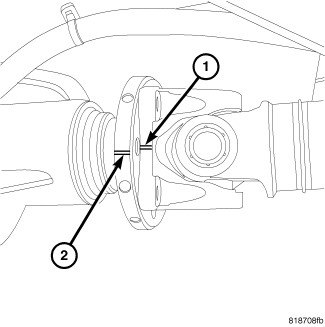

  2. Align installation reference marks on the transfer case flange (1) front shaft CV joint (2).

    3.

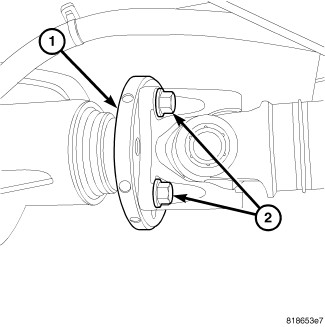

  3. Install CV joint retainers (2) and bolts (1). Tighten bolts to 20 N·m (15 ft. lbs.).

    4.
  4. Align installation reference marks on the front propeller shaft flange (1) and axle flange (2).

    5.
  5. Install the axle flange (1) bolts (2) and tighten to 121 N·m (89 ft. lbs.).
