SEAT, Front

DESCRIPTION

DESCRIPTION

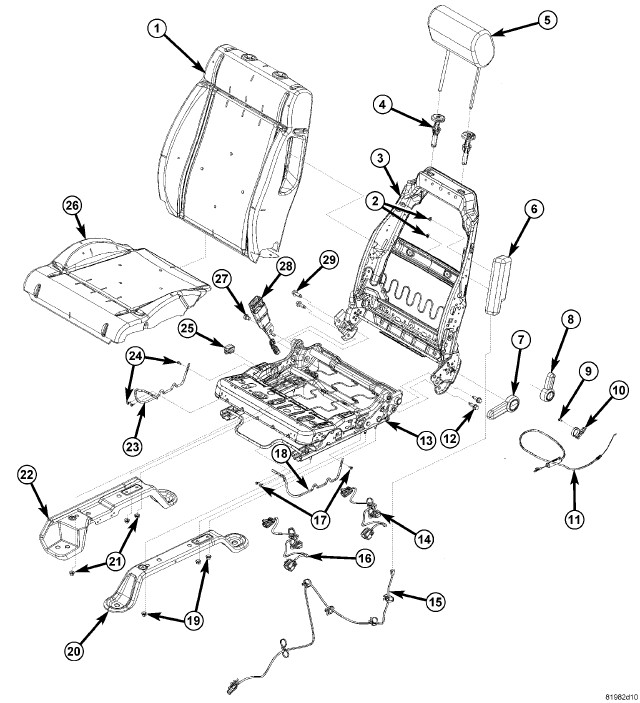

LEFT HAND SEAT – 2 WAY ADJUSTER

1 - SEAT BACK CUSHION/COVER

16 - WIRE HARNESS

2 - AIR BAG NUTS 7 N·m (5 ft. lbs.)

17 - RIVETS

3 - SEAT BACK FRAME

18 - TRIM ATTACHMENT WIRE

4 - HEADREST SLEEVES

19 - RISER NUTS 28 N·m (20.5 ft. lbs.)

5 - HEADREST

20 - OUTBOARD RISER

6 - SEAT AIR BAG

21 - RISER NUTS 28 N·m (20.5 ft. lbs.)

7 - RECLINER HANDLE

22 - INBOARD RISER

8 - EASY ENTRY HANDLE

23 - TRIM ATTACHMENT WIRE

9 - SCREW

24 - RIVETS

10 - EASY ENTRY CABLE ROUTER

25 - SEAT TRACK POSITION SENSOR

11 - EASY ENTRY CABLE

26 - SEAT CUSHION/COVER

12 - BACK ASSEMBLY BOLTS 47 N·m (34.5 ft. lbs.)

27 - SEAT BELT BUCKLE BOLT 50 N·m (37 ft. lbs.)

13 - SEAT CUSHION FRAME

28 - SEAT BELT BUCKLE

14 - WIRE HARNESS

29 - BACK ASSEMBLY BOLTS 47 N·m (34.5 ft. lbs.)

15 - SEAT AIR BAG HARNESS

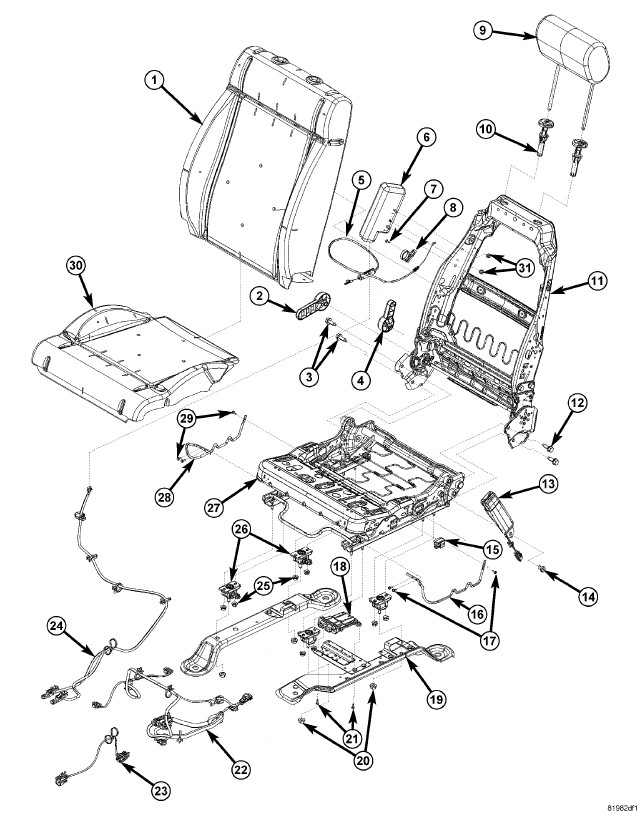

LEFT HAND SEAT – 4 WAY ADJUSTER

1 - SEAT BACK CUSHION/COVER

17 - SEAT AIR BAG HARNESS

2 - AIR BAG NUTS 7 N·m (5 ft. lbs.)

18 - RIVETS

3 - SEAT BACK FRAME

19 - TRIM ATTACHMENT WIRE

4 - HEADREST SLEEVES

20 - WIRE HARNESS

5 - HEADREST

21 - RISER NUTS 28 N·m (20.5 ft. lbs.)

6 - SEAT AIR BAG

22 - OUTBOARD RISER

7 - RECLINER HANDLE

23 - RISER NUTS 28 N·m (20.5 ft. lbs.)

8 - EASY ENTRY HANDLE

24 - INBOARD RISER

9 - SCREW

25 - TRIM ATTACHMENT WIRE

10 - EASY ENTRY CABLE ROUTER

26 - RIVETS

11 - EASY ENTRY CABLE

27 - SEAT CUSHION/COVER

12 - BACK ASSEMBLY BOLTS 47 N·m (34.5 ft. lbs.)

28 - SEAT TRACK POSITION SENSOR

13 - LIFT HANDLE

29 - SEAT BELT BUCKLE BOLT 50 N·m (37 ft. lbs.)

14 - LIFT HANDLE CAP

30 - SEAT BELT BUCKLE

15 - LIFT HANDLE SCREW

31 - SEAT BELT BUCKLE

16 - WIRE HARNESS

32 - BACK ASSEMBLY BOLTS 47 N·m (34.5 ft. lbs.)

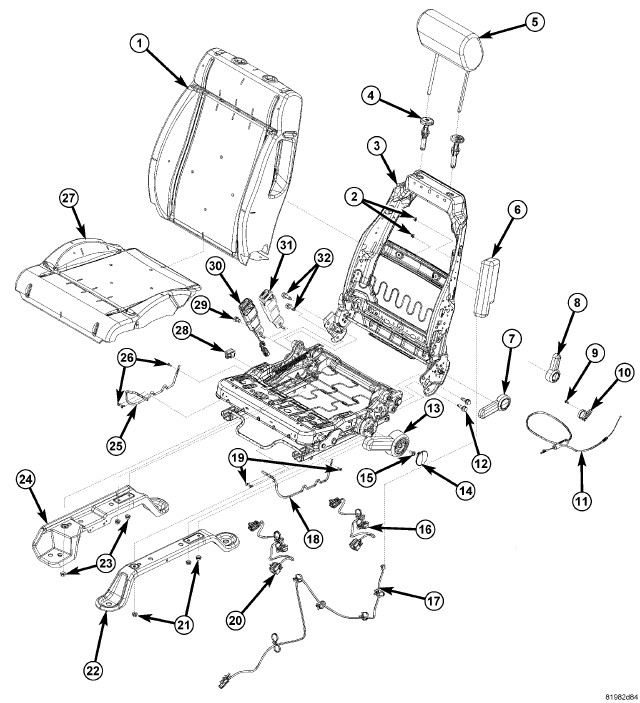

RIGHT HAND SEAT – 2 WAY ADJUSTER

1 - SEAT BACK CUSHION/COVER

17 - RIVETS

2 - RECLINER HANDLE

18 - OCS MODULE

3 - BACK ASSEMBLY BOLTS 47 N·m (34.5 ft. lbs.)

19 - INBOARD RISER

4 - EASY ENTRY HANDLE

20 - CENTER OCS STRAIN GAUGE STUD NUT 45 N·m (33 ft. lbs.)

5 - EASY ENTRY CABLE

21 - MODULE SCREWS

6 - SEAT AIR BAG

22 - WIRE HARNESS

7 - SCREW

23 - WIRE HARNESS

8 - EASY ENTRY CABLE ROUTER

24 - AIR BAG HARNESS

9 - HEADREST

25 - OCS RISER NUTS 28 N·m (21 ft. lbs.)

10 - HEADREST SLEEVE

26 - OCS STRAIN GAUGE (4)

11 - SEAT BACK FRAME

27 - SEAT CUSHION FRAME

12 - BACK ASSEMBLY BOLTS 47 N·m (34.5 ft. lbs.)

28 - TRIM ATTACHMENT WIRE

13 - SEAT BELT BUCKLE

29 - RIVETS

14 - SEAT BELT BUCKLE BOLT 50 N·m (37 ft. lbs.)

30 - SEAT CUSHION/COVER

15 - SEAT TRACK POSITION SENSOR

31 - AIR BAG NUTS 7 N·m (5 ft. lbs.)

16 - TRIM ATTACHMENT WIRE

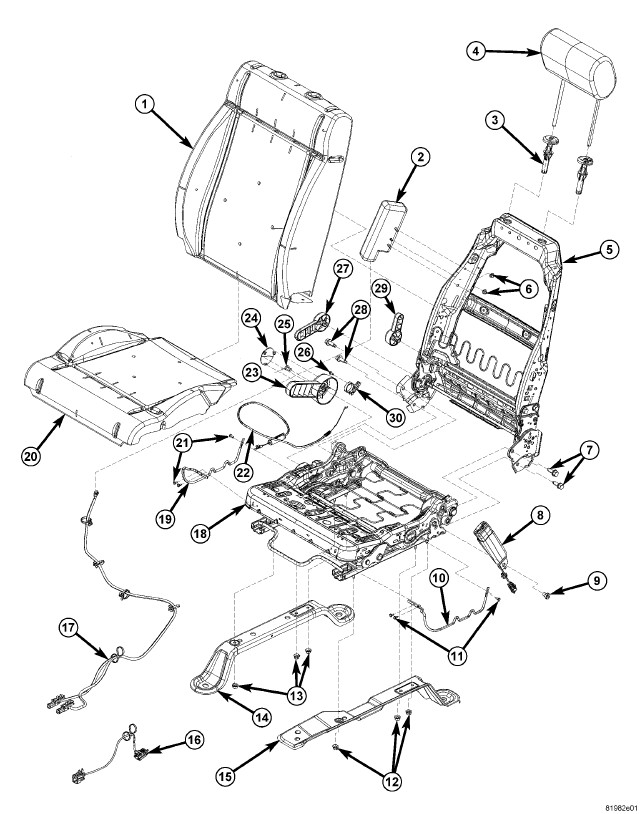

RIGHT HAND SEAT – 4 WAY ADJUSTER

1 - SEAT BACK CUSHION/COVER

16 - WIRE HARNESS

2 - SEAT AIR BAG

17 - SIDE AIR BAG WIRE HARNESS

3 - HEADREST SLEEVES

18 - SEAT CUSHION FRAME

4 - HEADREST

19 - TRIM ATTACHMENT WIRE

5 - SEAT BACK FRAME

20 - SEAT CUSHION/COVER

6 - AIR BAG NUTS 7 N·m (5 ft. lbs.)

21 - RIVETS

7 - BACK ASSEMBLY BOLTS 47 N·m (34.5 ft. lbs.)

22 - EASY ENTRY CABLE

8 - SEAT BELT BUCKLE

23 - LIFT HANDLE

9 - SEAT BELT BUCKLE BOLT 50 N·m (37 ft. lbs.)

24 - LIFT HANDLE CAP

10 - TRIM ATTACHMENT WIRE

25 - LIFT HANDLE SCREW

11 - RIVETS

26 - SCREW

12 - RISER NUTS 28 N·m (21 ft. lbs.)

27 - RECLINER HANDLE

13 - RISER NUTS 28 N·m (21 ft. lbs.)

28 - BACK ASSEMBLY BOLTS 47 N·m (34.5 ft. lbs.)

14 - OUTBOARD RISER

29 - EASY ENTRY HANDLE

15 - INBOARD RISER

30 - EASY ENTRY CABLE ROUTER

REMOVAL

REMOVAL

  1. Before proceeding with the following repair procedure, review all warnings and cautions. (Refer to 23 - Body/Seats - Warning)

    WARNING:

    The Seat Weight Sensor is a sensitive, calibrated unit and must be handled carefully. Do not drop or handle roughly. If dropped or damaged, replace with another sensor. Failure to follow these instructions may result in personal injury or death.

    WARNING:

    The front passenger seat must be handled carefully as well. When removing the seat, be careful when setting on floor not to drop. If dropped, the sensor may be inoperative. Failure to follow these instructions may result in personal injury or death.

    WARNING:

    When the seat is on the floor, no one should sit in the front passenger seat. This uneven force may damage the sensing ability of the seat weight sensors. If sat on and damaged, the sensor may be inoperative. Failure to follow these instructions may result in personal injury or death.




    NOTE:

    If equipped with a traveling seat belt anchor.


    2.

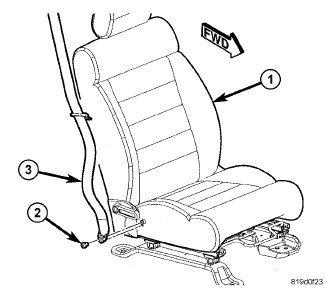

  2. Adjust the front seat (1) to its most forward position for easiest access to the front seat belt (3) lower anchor and the B-pillar trim.

    3.
  3. Disconnect and isolate the battery negative cable. Wait two minutes for the system capacitor to discharge before further service.

    4.
  4. Remove the screw (2) that secures the lower anchor to the outboard side of the front seat cushion frame.

    5.

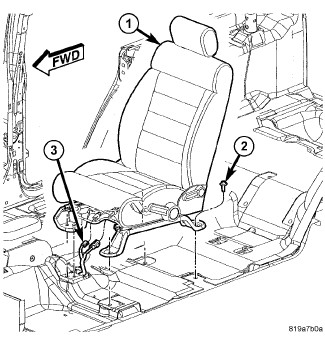

  5. Remove the four seat bolts (2).

    6.
  6. Tip the seat back and disconnect the electrical connectors (3).

    7.
  7. Remove the seat.

    8.

INSTALLATION

INSTALLATION

  1. Before proceeding with the following repair procedure, review all warnings and cautions. (Refer to 23 - Body/Seats - Warning)

    WARNING:

    The Seat Weight Sensor is a sensitive, calibrated unit and must be handled carefully. Do not drop or handle roughly. If dropped or damaged, replace with another sensor. Failure to follow these instructions may result in personal injury or death.

    WARNING:

    The front passenger seat must be handled carefully as well. When removing the seat, be careful when setting on floor not to drop. If dropped, the sensor may be inoperative. Failure to follow these instructions may result in personal injury or death.

    WARNING:

    When the seat is on the floor, no one should sit in the front passenger seat. This uneven force may damage the sensing ability of the seat weight sensors. If sat on and damaged, the sensor may be inoperative. Failure to follow these instructions may result in personal injury or death.



    2.
  2. Position the seat into the vehicle and connect the electrical connectors (3), if equipped.

    3.
  3. Install the bolts (2).

    1. Adjust the seat rearward.

      2.
    2. Tighten the front inboard bolt to 75 N·m (55 ft. lbs.).

      3.
    3. Tighten the front outboard bolt to 75 N·m (55 ft. lbs.).

      4.
    4. Adjust the seat forward.

      5.
    5. Tighten the rear inboard bolt to 75 N·m (55 ft. lbs.).

      6.
    6. Tighten the rear outboard bolt to 75 N·m (55 ft. lbs.).

      7.



    NOTE:

    If equipped with a traveling seat belt anchor.


    4.
  4. Position the seat belt (3) lower anchor to the mounting hole on the outboard side of the front seat (1) cushion frame. Be certain that the seat belt webbing between the turning loop and the lower anchor is not twisted.

    5.
  5. Install and tighten the screw (2) that secures the lower anchor to the seat. Tighten the screw to 40 N·m (30 ft. lbs.).

    6.
  6. Do not reconnect the battery negative cable at this time. The supplemental restraint system verification test procedure should be performed following service of any supplemental restraint system component. (Refer to 28 - DTC-Based Diagnostics/CONTROLLER, Occupant Restraint (ORC) - Standard Procedure).
