2012 Jeep Wrangler JK Factory Service Manual 21 - Transmission and Transfer Case

LEVER, Transfer Case

REMOVAL

REMOVAL

  1. Shift transfer case into 4L.

    2.
  2. Remove the floor console as necessary to access the shifter mechanism. (Refer to 23 - Body/Interior/CONSOLE, Center - Removal)

    3.

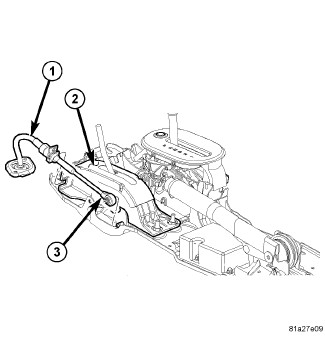

  3. Disengage the transfer case shift cable from the shift lever pin and body.

    4.

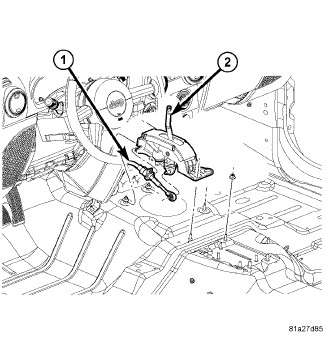

  4. Remove the nuts attaching lever assembly (1) to floorpan and remove assembly (2).

    5.
  5. Remove the shifter mechanism from the vehicle.

    6.

INSTALLATION

INSTALLATION

  1. Position the shift mechanism over the shifter retaining studs on the floor pan.

    2.
  2. Install the nuts to hold the shifter mechanism to the floor pan. Tighten the nuts to 11.9 N·m (105 in.lbs.).

    3.
  3. Verify that the floor shifter is in the 4L position.

    4.
  4. Connect the transfer case shift cable to the shift lever body and pin.

    5.
  5. Install any floor console components previously removed. (Refer to 23 - Body/Interior/CONSOLE, Center - Installation)

    6.
  6. Check for proper transfer case shifter operation.

    7.
