HANDLE

REMOVAL
INSTALLATION

REMOVAL

Special Tools: Click to display a list of tools used in this procedure

NOTE:
Manual transmission shifter assembly shown. Automatic transmission shifter assembly typical.

NOTE:
Most handles can be remove by hand. The motion should mimic that of a slide hammer. Constant force doesn't aid in the removal of the handle.

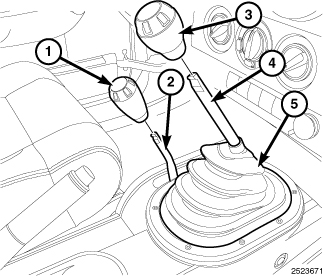

Slide the shift lever (2) back towards the seat and pull in an upward motion with a "quick" snap to remove the handle (1).

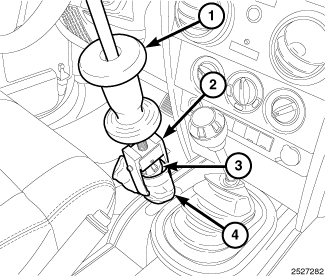

If removal of the handle by hand is not possible wrap a shop towel or equivalent (4) around the base of the handle (3) and using puller C-4333A-1 or equivalent (2) and slide hammer (1), remove the handle (3) from the shift lever.

INSTALLATION

Install the shift handle (1) onto the shift lever (2) and firmly push the shift handle (1) down, a audible click should be heard when the shift handle (1) is seated in position.
