2012 Jeep Wrangler JK Factory Service Manual 22 - Tires and Wheels

STUD, Wheel

FRONT WHEEL STUD

FRONT WHEEL STUD

Special Tools: Click to display a list of tools used in this procedure

CAUTION:

Do not use a hammer to remove wheel studs.

  1. Raise and support vehicle.

    2.
  2. Remove wheel and tire assembly.

    3.
  3. Remove brake caliper, caliper adapter and rotor, (Refer to 05 - Brakes/Hydraulic/Mechanical/ROTOR, Brake - Removal) .

    4.

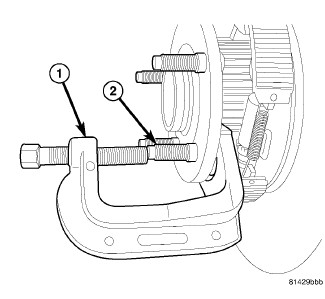

  4. Remove stud (2) from hub with Remover C-4150A A (1).

    5.

REAR WHEEL STUD

REAR WHEEL STUD

Special Tools: Click to display a list of tools used in this procedure

CAUTION:

Do not use a hammer to remove wheel studs.

  1. Raise and support vehicle.

    2.
  2. Remove wheel and tire assembly.

    3.
  3. Remove brake caliper and rotor, (Refer to 05 - Brakes/Hydraulic/Mechanical/ROTOR, Brake - Removal) .

    4.

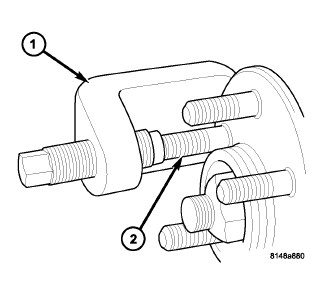

  4. Remove stud (2) from hub with Remover 8677 (1).

    5.

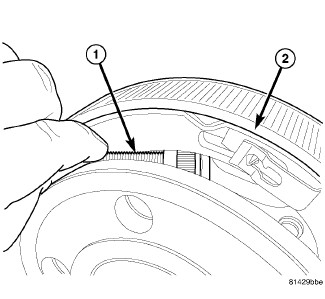

  5. Remove the stud (1) from between the hub/bearing and brake shoes (2)

    6.

FRONT WHEEL STUD

FRONT WHEEL STUD

CAUTION:

Do not use a hammer to remove wheel studs.

  1. Install the new stud into the hub flange.

    2.
  2. Install the three washers onto the stud, then install the lug nut with the flat side of the nut against the washers.

    3.
  3. Tighten the lug nut until the stud is pulled into the hub flange. Verify that the stud is properly seated into the flange.

    4.
  4. Remove the lug nut and washers.

    5.
  5. Install the brake rotor, caliper adapter, and caliper, (Refer to 05 - Brakes/Hydraulic/Mechanical/CALIPER, Disc Brake - Installation) .

    6.
  6. Install the wheel and tire assembly, use new lug nut on stud or studs that were replaced.

    7.
  7. Remove the support and lower vehicle.

    8.

REAR WHEEL STUD

REAR WHEEL STUD

  1. Install the new stud (1) into the hub flange by rotating the stud (1) in between the hub/bearing and park brake shoes (2).

    2.
  2. Install the three washers onto the stud, then install the lug nut with the flat side of the nut against the washers.

    3.
  3. Tighten the lug nut until the stud is pulled into the hub flange. Verify that the stud is properly seated into the flange.

    4.
  4. Remove the lug nut and washers.

    5.
  5. Install the brake rotor and caliper, (Refer to 05 - Brakes/Hydraulic/Mechanical/CALIPER, Disc Brake - Installation) .

    6.
  6. Install the wheel and tire assembly, use new lug nut on stud or studs that were replaced.

    7.
  7. Remove the support and lower vehicle.

    8.
