2014 Jeep Wrangler JK Factory Service Manual 09 - Engine, 2.8L Diesel

COVER, Engine

REMOVAL

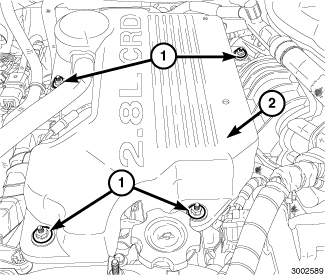

  1. Remove the four nuts (1).

    NOTE:

    Use care when removing the engine cover as some of the insulation could get damaged upon removal.


    2.
  2. Carefully lift up and remove the engine cover (2).

    3.

INSTALLATION

  1. Carefully position and install the engine cover (2).

    2.
  2. Install and securely tighten the four retaining nuts (1).

    3.
