SCHEMATICS AND DIAGRAMS

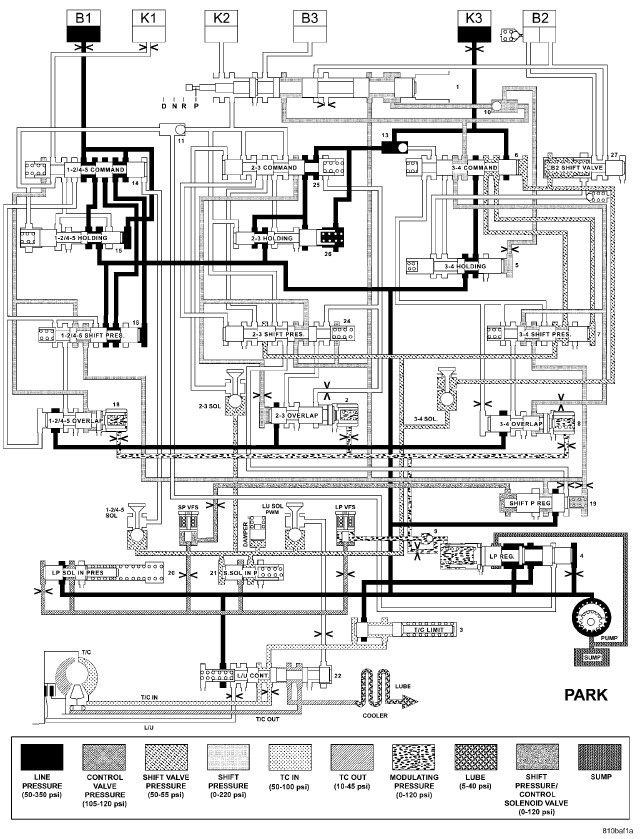

HYDRAULIC FLOW IN PARK

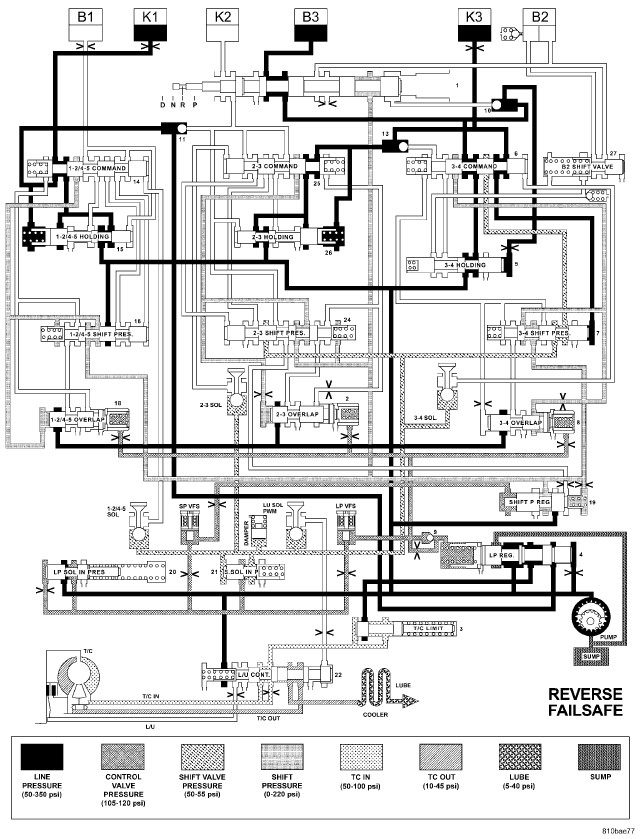

HYDRAULIC FLOW IN REVERSE - FAILSAFE

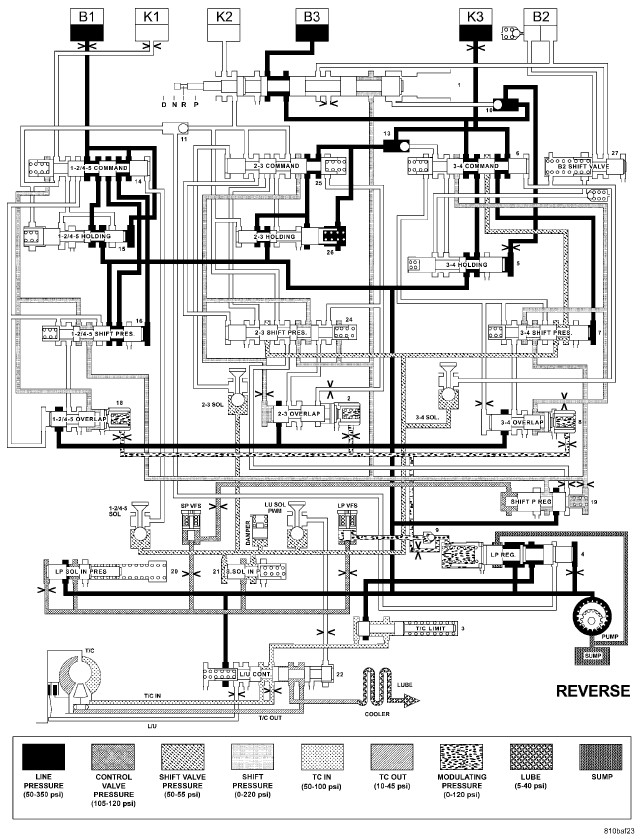

HYDRAULIC FLOW IN REVERSE

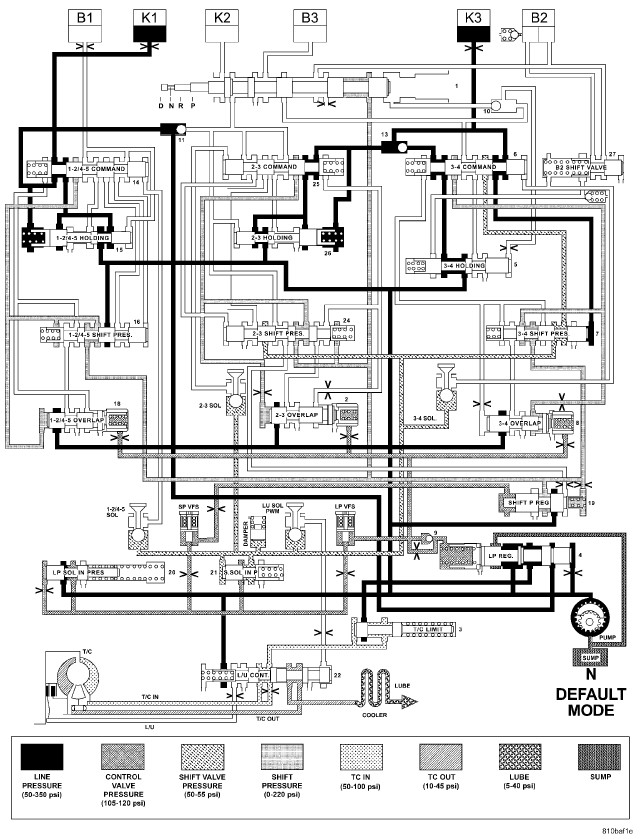

HYDRAULIC FLOW IN NEUTRAL - DEFAULT

HYDRAULIC FLOW IN NEUTRAL

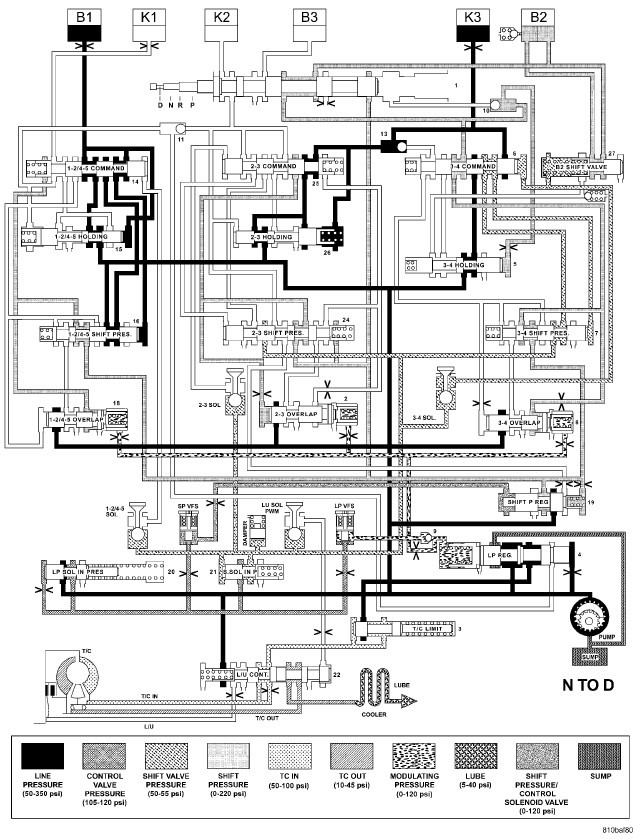

HYDRAULIC FLOW IN NEUTRAL TO DRIVE TRANSITION

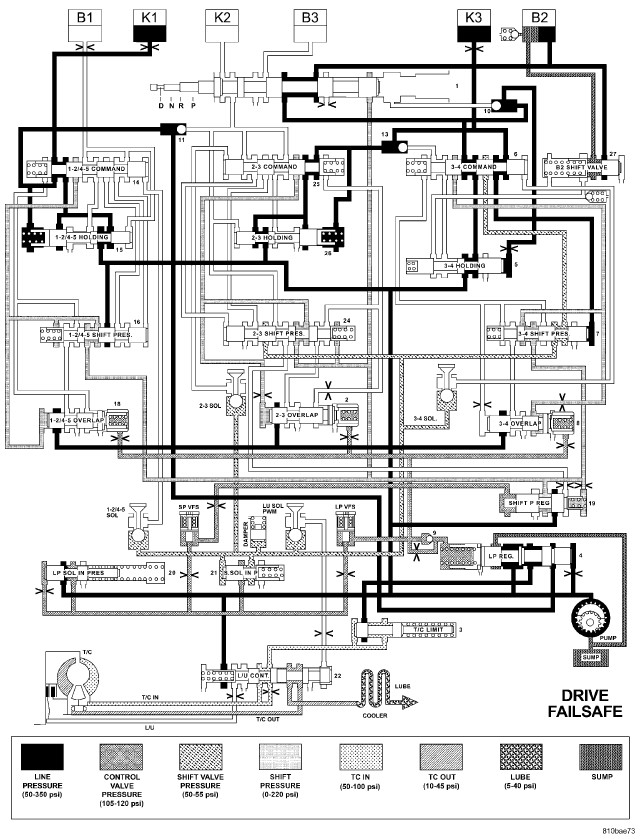

HYDRAULIC FLOW IN DRIVE - FAILSAFE

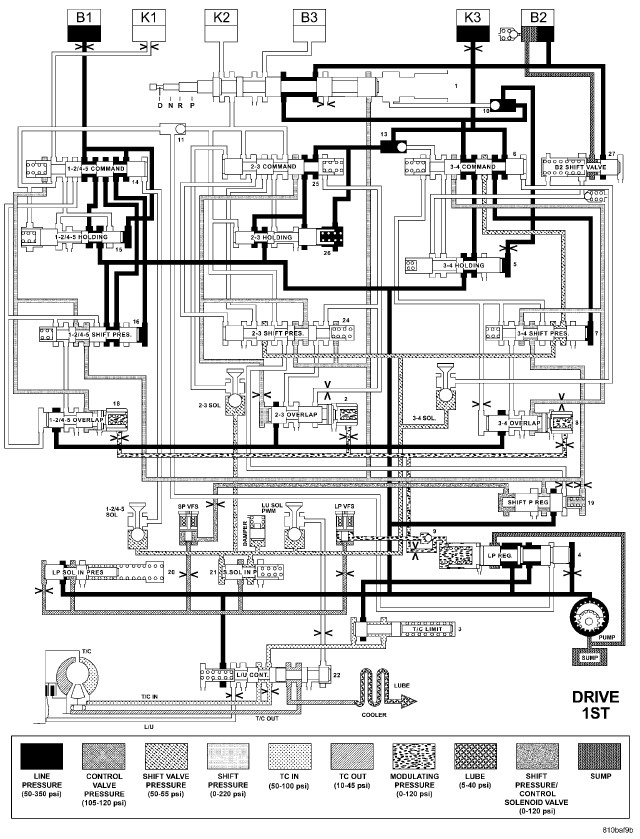

HYDRAULIC FLOW IN DRIVE - FIRST GEAR

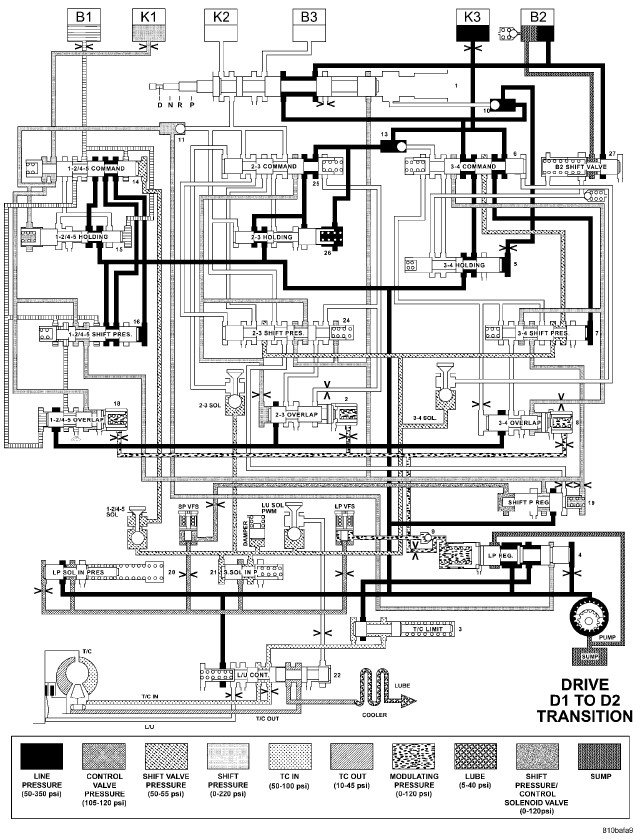

HYDRAULIC FLOW IN DRIVE - FIRST TO SECOND GEAR TRANSITION

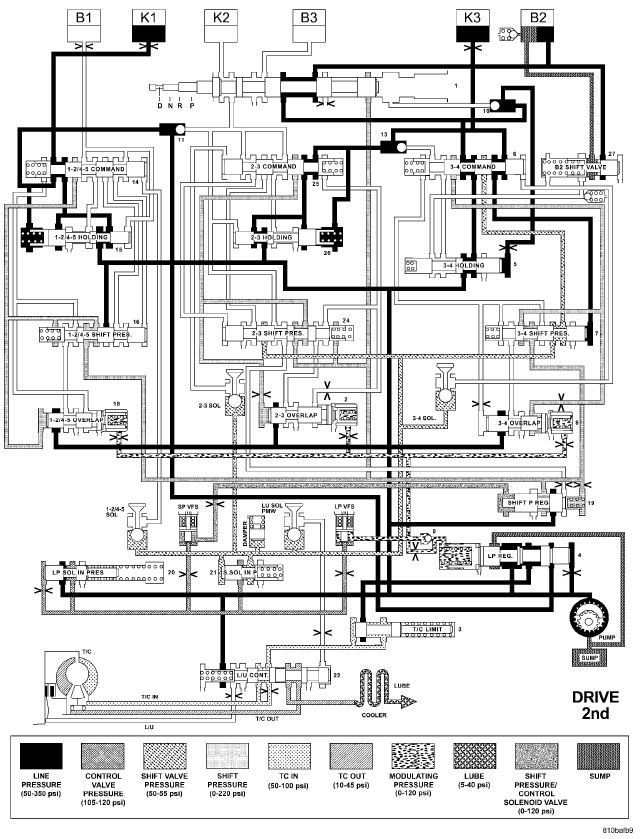

HYDRAULIC FLOW IN DRIVE - SECOND GEAR

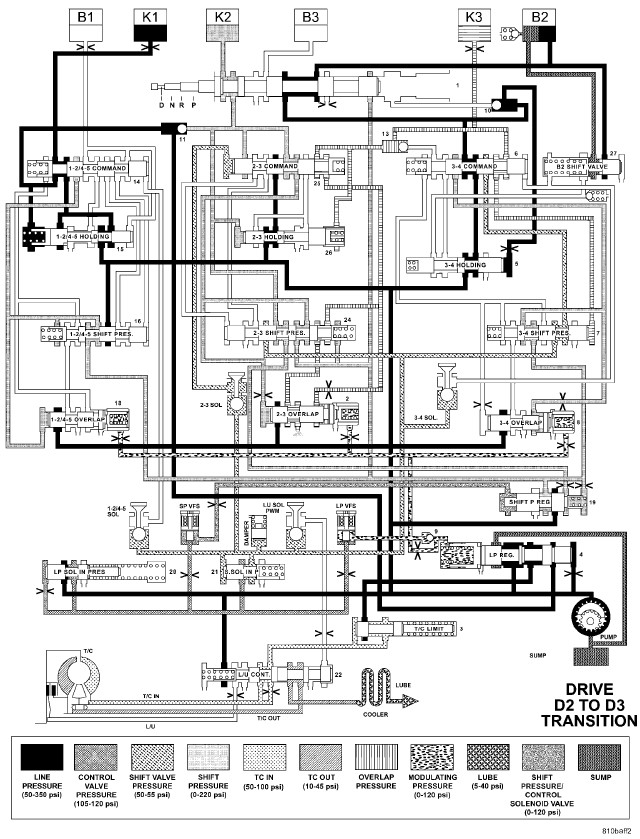

HYDRAULIC FLOW IN DRIVE - SECOND TO THIRD GEAR TRANSITION

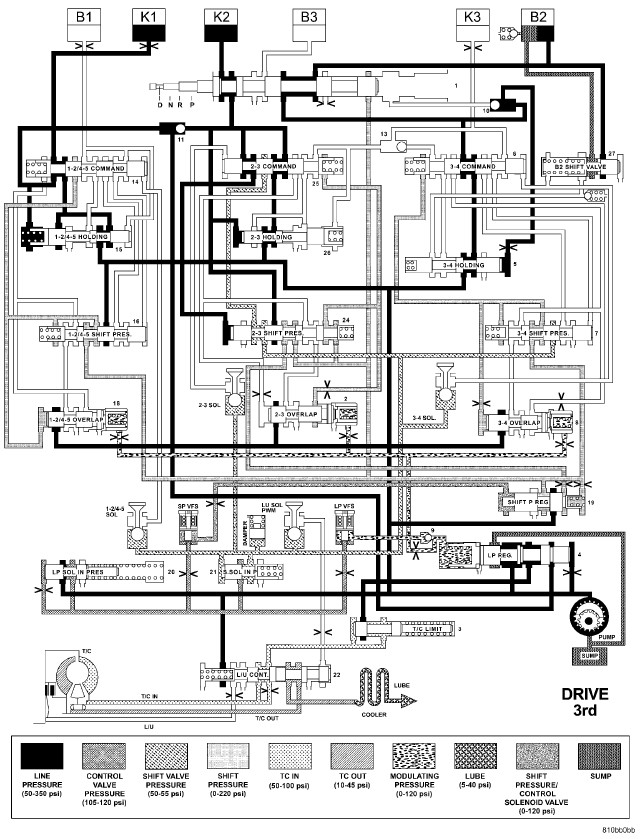

HYDRAULIC FLOW IN DRIVE - THIRD GEAR

HYDRAULIC FLOW IN DRIVE - THIRD TO FOURTH GEAR TRANSITION

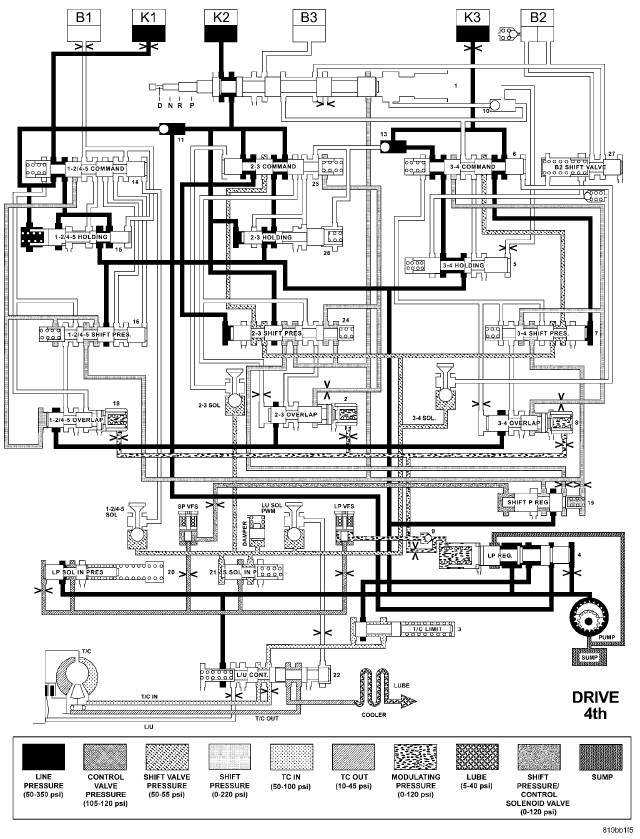

HYDRAULIC FLOW IN DRIVE - FOURTH GEAR

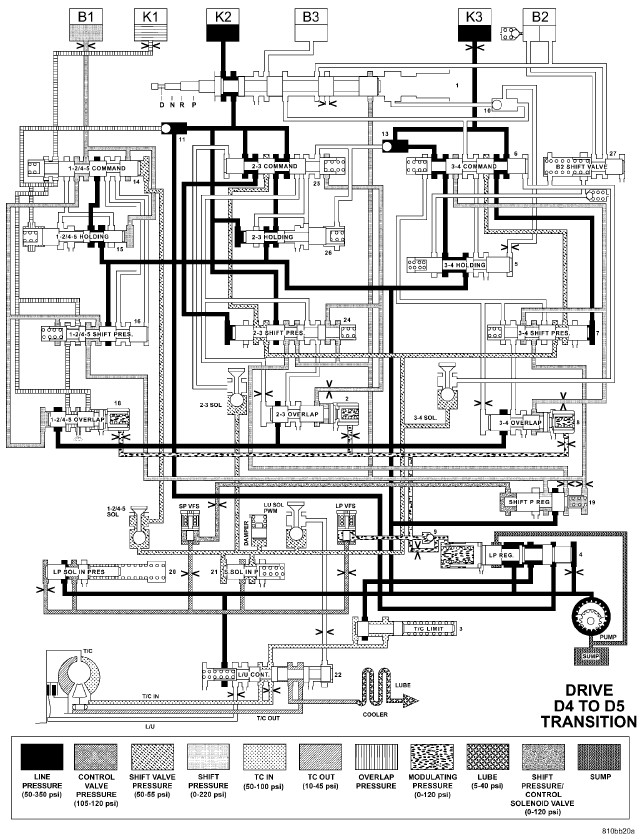

HYDRAULIC FLOW IN DRIVE - FOURTH TO FIFTH GEAR TRANSITION

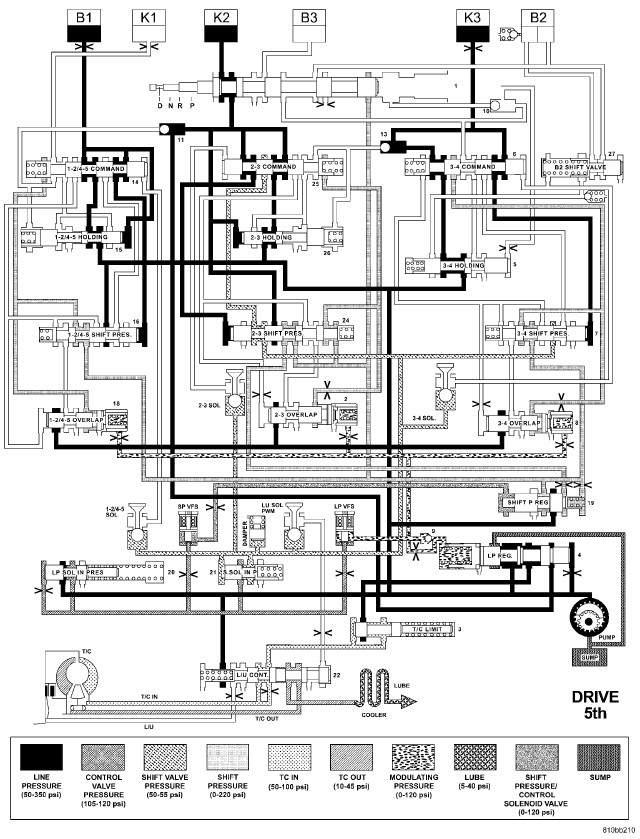

HYDRAULIC FLOW IN DRIVE - FIFTH GEAR

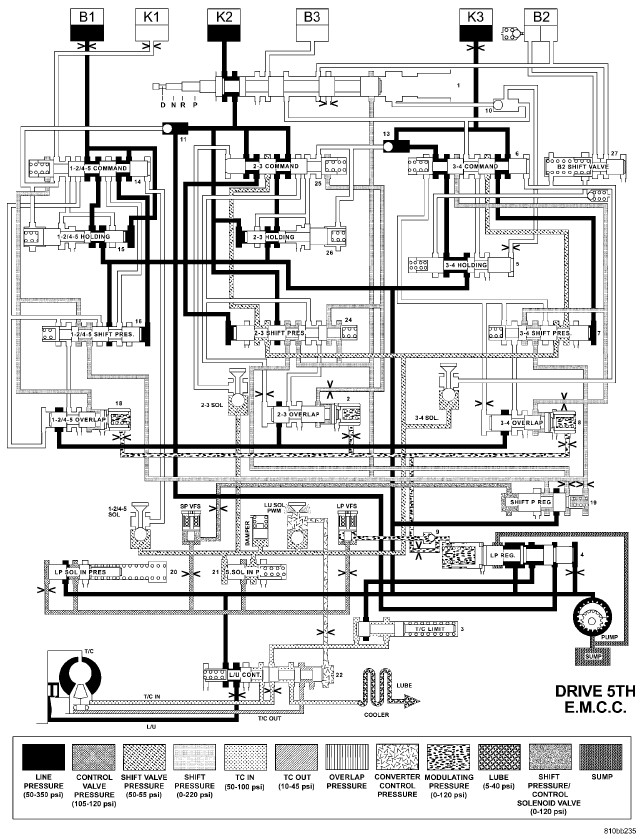

HYDRAULIC FLOW IN DRIVE - FIFTH GEAR - EMCC

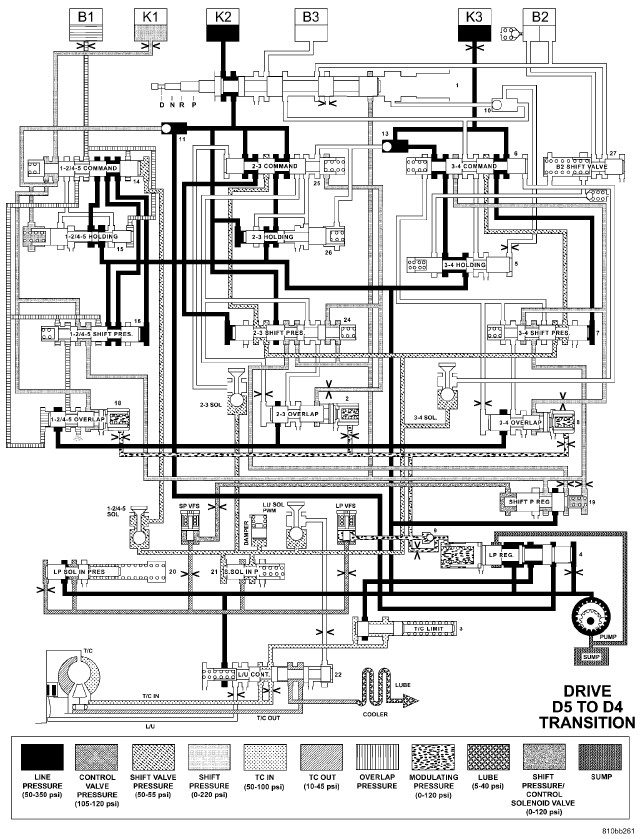

HYDRAULIC FLOW IN DRIVE - FIFTH TO FOURTH GEAR TRANSITION

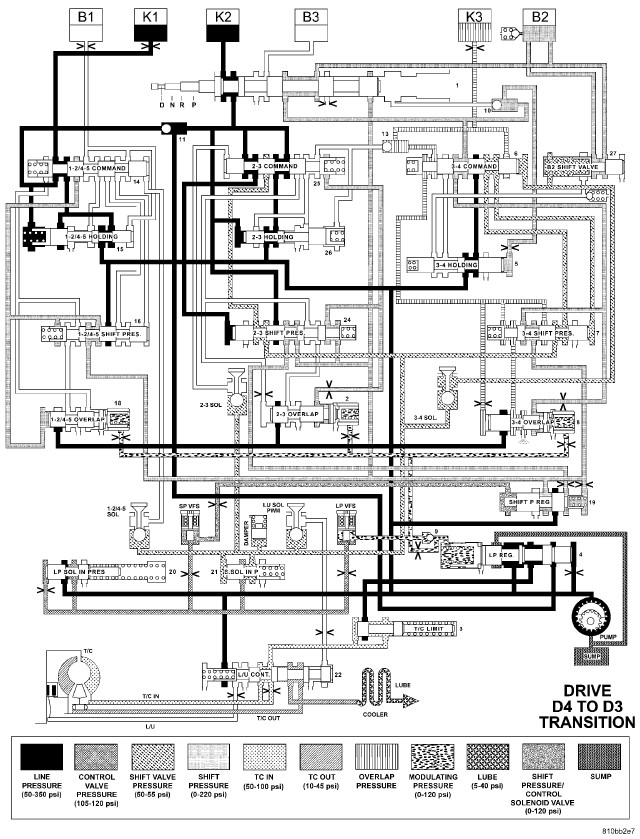

HYDRAULIC FLOW IN DRIVE - FOURTH TO THIRD GEAR TRANSITION

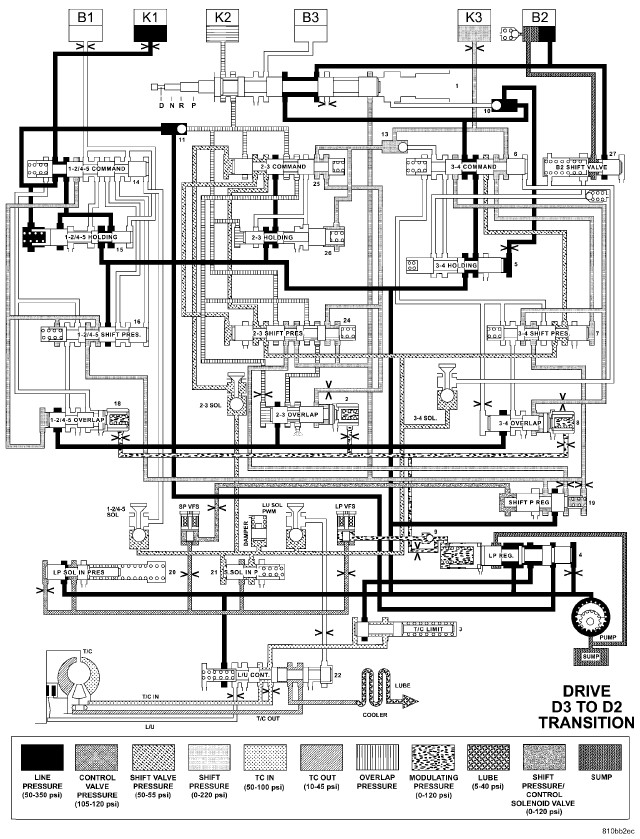

HYDRAULIC FLOW IN DRIVE - THIRD TO SECOND GEAR TRANSITION

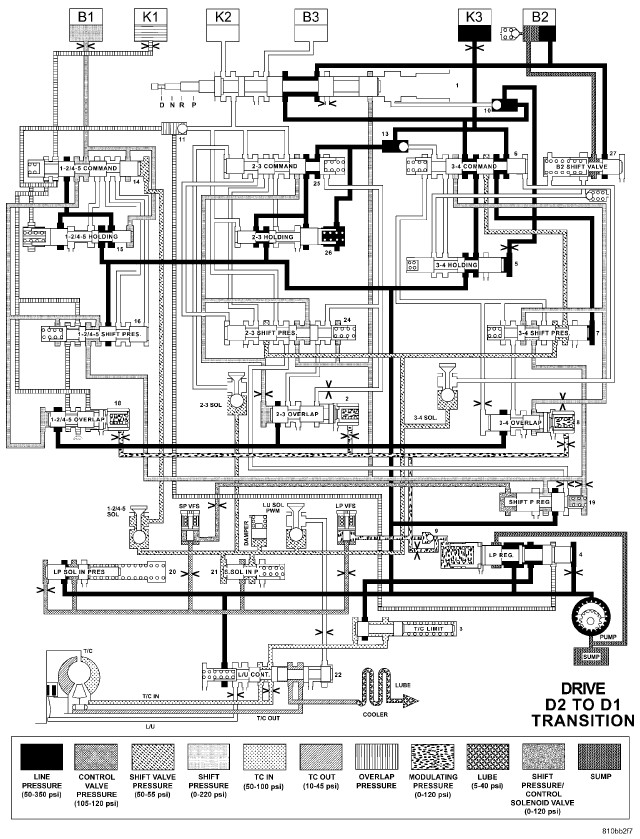

HYDRAULIC FLOW IN DRIVE - SECOND TO FIRST GEAR TRANSITION
