2014 Jeep Wrangler JK Factory Service Manual 22 - Tires and Wheels

Wheels

DESCRIPTION

The rim size is on the vehicle safety certification label located on the drivers door shut face. Original equipment wheels/rims are designed for operation up to the specified maximum vehicle capacity.

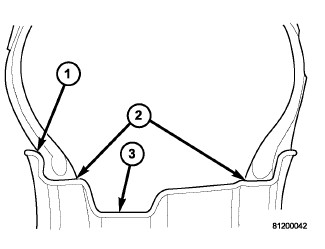

All models use stamped steel, cast aluminum or forged aluminum wheels. Every wheel has raised sections between the rim flanges (1) and rim drop well (3) called safety humps.

Initial inflation of the tire forces the bead over these raised sections. In case of rapid loss of air pressure, the raised sections help hold the tire on the wheel.

The wheel studs and nuts are designed for specific applications. All aluminum and some steel wheels have wheel stud nuts with an enlarged nose. This enlarged nose is necessary to ensure proper retention of the wheels. Do not use replacement studs or nuts with a different design or lesser quality.

DIAGNOSIS AND TESTING - WHEEL INSPECTION

Inspect wheels for:



NOTE:

Do not attempt to repair a wheel by hammering, heating or welding.

If a wheel is damaged an original equipment replacement wheel should be used. When obtaining replacement wheels, they should be equivalent in load carrying capacity. The diameter, width, offset, pilot hole and bolt circle of the wheel should be the same as the original wheel.

WARNING:

Failure to use equivalent replacement wheels may adversely affect the safety and handling of the vehicle. Used wheels are not recommended. The service history of the wheel may have included severe treatment or very high mileage. The rim could fail without warning.

WARNING:

Chrysler LLC does not recommend that customers use “reconditioned” wheels (wheels that have been damaged and repaired) because they can result in a sudden catastrophic wheel failure which could cause loss of control and result in injury or death.

For Clarification:

  • Cosmetic refinishing for the purpose of repairing a superficial flaw is an acceptable procedure providing it is limited to paint or clear coat only, the wheel is not modified in any way, and there is no exposure to paint curing heat over 200 degrees Fahrenheit.
  • Damaged wheels are those which have been bent, broken, cracked or sustained some other physical damage which may have compromised the wheel structure
  • Repaired indicates that the wheel has been modified through bending, welding, heating, straightening, or material removal to rectify damage.
  • Re-plating of chrome plated wheels is not an acceptable procedure nor is chrome plating of original equipment painted or polished wheels, as this may alter mechanical properties and affect fatigue life.

WHEEL INSTALLATION

The wheel studs and nuts are designed for specific applications. They must be replaced with equivalent parts. Do not use replacement parts of lesser quality or a substitute design. All aluminum and some steel wheels have wheel stud nuts which feature an enlarged nose. This enlarged nose is necessary to ensure proper retention of the aluminum wheels.



NOTE:

Do not use chrome plated lug nuts with chrome plated wheels.

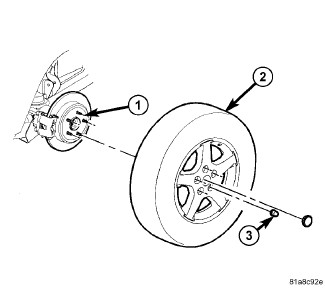

Before installing the wheel, be sure to remove any build up of corrosion on the wheel mounting surfaces (1). Ensure wheels (2) are installed with good metal-to-metal contact. Improper installation could cause loosening of wheel nuts. This could affect the safety and handling of your vehicle.

To install the wheel (2) , first position it properly on the mounting surface (1). All wheel nuts (3) should then be tightened just snug.

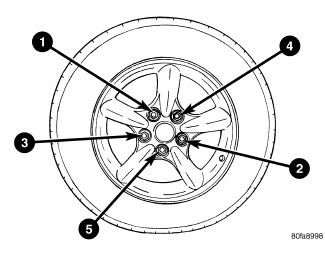

Gradually tighten them in sequence to the proper torque specification . Never use oil or grease on studs or nuts.

WHEEL REPLACEMENT


The wheel studs and nuts are designed for specific applications. They must be replaced with equivalent parts. Do not use replacement parts of lesser quality or a substitute design. All aluminum and some steel wheels have wheel stud nuts which feature an enlarged nose. This enlarged nose is necessary to ensure proper retention of the aluminum wheels.



NOTE:

Do not use chrome plated lug nuts with chrome plated wheels.

Before installing the wheel, be sure to remove any build up of corrosion on the wheel mounting surfaces. Ensure wheels are installed with good metal-to-metal contact. Improper installation could cause loosening of wheel nuts. This could affect the safety and handling of your vehicle.

To install the wheel, first position it properly on the mounting surface. All wheel nuts should then be tightened just snug. Gradually tighten them in sequence to the proper torque specification. Never use oil or grease on studs or nuts.

Wheels must be replaced if they have:

Wheel repairs employing hammering, heating, or welding are not allowed.

Original equipment wheels are available through your dealer. Replacement wheels from any other source should be equivalent in:

Failure to use equivalent replacement wheels may affect the safety and handling of your vehicle. Replacement with used wheels is not recommended. Their service history may have included severe treatment.

SPECIFICATIONS


DESCRIPTION N·m

Ft. Lbs.

In. Lbs.

Lug Nut

165

122

—

Spare Tire Carrier Lug Nut (Aluminum Wheel)

73

54

—

Spare Tire Carrier Lug Nut (Steel Wheel)

98

72

—
