2014 Jeep Wrangler JK Factory Service Manual 29 - Non-DTC Diagnostics

CONNECTOR TERMINAL REMOVAL

  1. Disconnect battery.

    2.

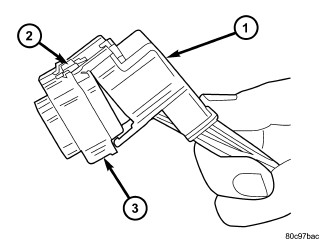

  2. Release Connector Lock (2).

    3.
  3. Disconnect the connector (3) being repaired from its mating half/component.

    4.
  4. Remove the dress cover (if applicable) (1).

    5.

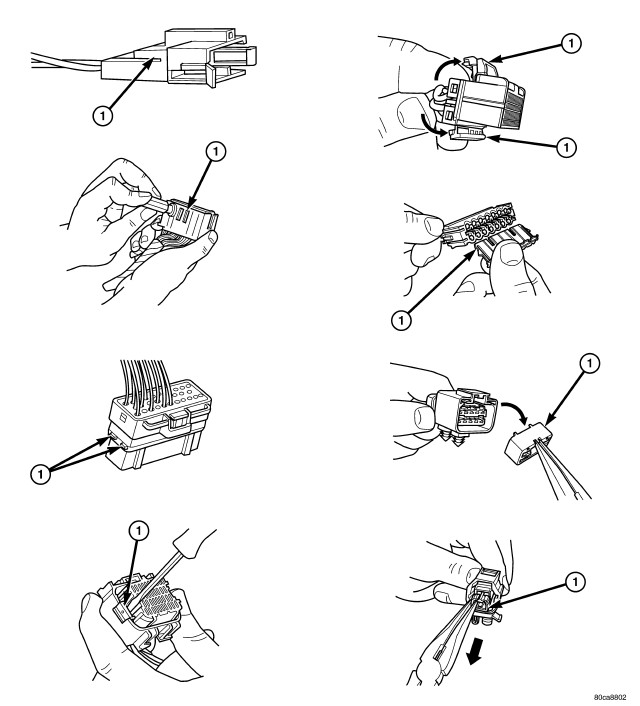

  5. Release the Secondary Terminal Lock, if required (1).

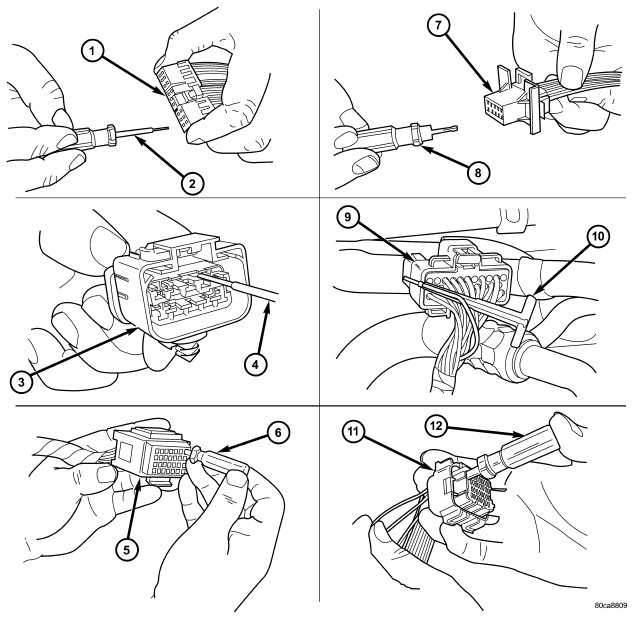

    1 - TYPICAL CONNECTOR

    2 - PICK FROM TERMINAL REMOVER KIT 10300

    3 - APEX CONNECTOR

    4 - PICK FROM TERMINAL REMOVER KIT 10300

    5 - AUGAT CONNECTOR

    6 - ELECTRICAL TERMINAL REMOVAL TOOL

    7 - MOLEX CONNECTOR

    8 - PICK FROM TERMINAL REMOVER KIT 10300

    9 - THOMAS AND BETTS CONNECTOR

    10 - TERMINAL REMOVER

    11 - CONNECTOR

    12 - ELECTRICAL TERMINAL REMOVER



    6.
  6. Position the connector locking finger away from the terminal using the proper special tool. Pull on the wire to remove the terminal from the connector.
