MODULE, Glow Plug
REMOVAL
RIGHT HAND DRIVE
 |
| NOTE: |

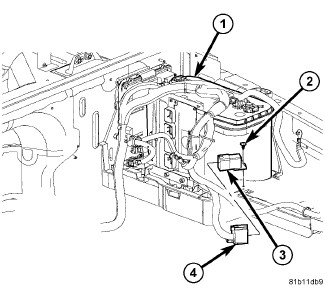

The glow plug module (3) is located near the front of the battery (1). |
- Disconnect the negative battery cable.
- Carefully remove mounting pin (2).
-
Disconnect the wire harness connector (4) from the glow plug module.
LEFT HAND DRIVE
 |
| NOTE: |

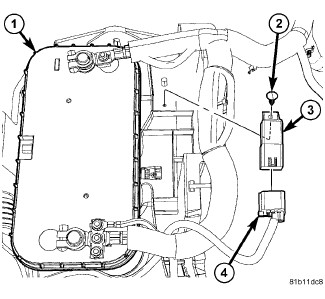

The glow plug module (3) is located near the front of the battery (1). |
INSTALLATION
RIGHT HAND DRIVE
|
| NOTE: |
The glow plug module (3) is located near the front of the battery (1). |
- Connect the wire harness connector (4) to the glow plug module.
- Position the glow plug module (3) and install the mounting pin (2).
-
Connect the negative battery cable.
LEFT HAND DRIVE
|
| NOTE: |
The glow plug module (3) is located near the front of the battery (1). |
