BODY, Air Cleaner

REMOVAL

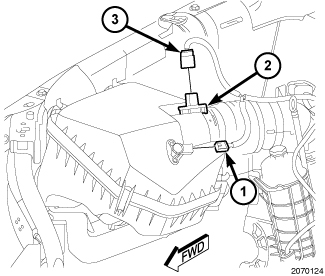

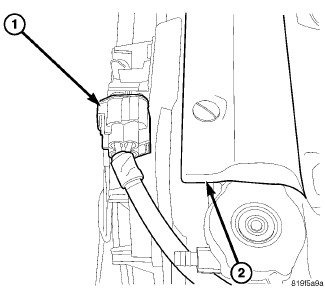

  1. Disconnect the cooling fan electrical connector (1).

    2.
  2. Loosen worm clamp and remove the air cleaner outlet tube from air cleaner housing (2).

    3.
  3. Disconnect the IAT sensor (1).

    4.
  4. Release the lock tab and disconnect the MAF sensor (3).

    5.

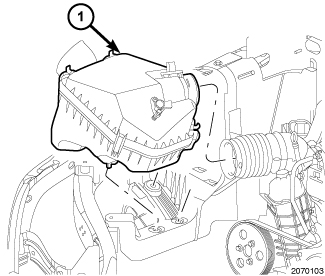

  5. To remove the air cleaner assembly, first lift up on air cleaner body to release the three tabs; then disconnect the inlet tube from housing and remove the air cleaner assembly.

    6.

INSTALLATION

  1. Install the air cleaner assembly (1) and connect the inlet tube.

    2.
  2. Connect the MAF sensor (3).

    3.
  3. Connect the IAT sensor (1).

    4.
  4. Install the air cleaner outlet tube and tighten the worm clamp (2).

    5.
  5. Connect the cooling fan electrical connector (1).

    6.
