2014 Jeep Wrangler JK Factory Service Manual 21 - Transmission and Transfer Case

SEAL, Torque Converter Hub

REMOVAL

  1. Remove the torque converter (Refer to 21 - Transmission and Transfer Case/Automatic - NAG1/TORQUE CONVERTER - Removal) .

    2.
  2. Remove the torque converter hub seal with suitable screw and slide hammer.

    3.

INSTALLATION

Special Tools: Click to display a list of tools used in this procedure

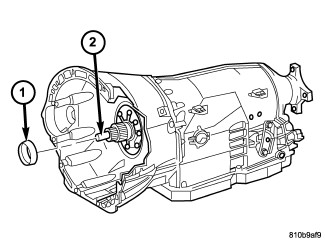

  1. Position the torque converter hub seal (1) over the input shaft and against the transmission oil pump.

    2.

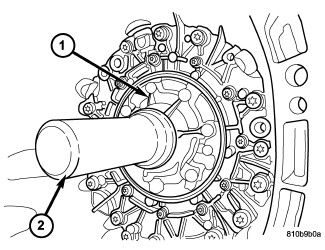

  2. Using Seal Installer 8902A (2) , install a new torque converter hub seal.

    3.
  3. Install the torque converter (Refer to 21 - Transmission and Transfer Case/Automatic - NAG1/TORQUE CONVERTER - Installation) .

    4.
