2014 Jeep Wrangler JK Factory Service Manual 13 - Frame and Bumpers

BUMPER, Rear

REMOVAL

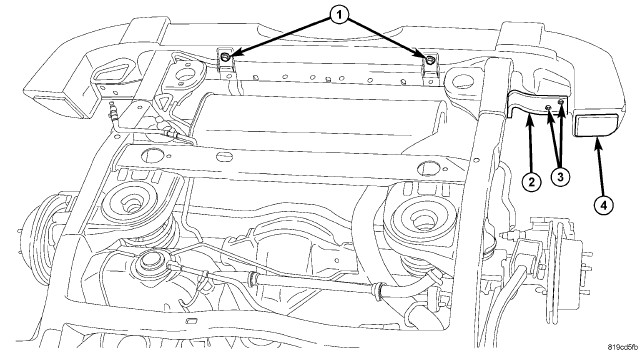

  1. Remove the bumper bracket bolts (3).

    2.
  2. Remove the bumper support bolts (1) and remove the bumper (4).

    3.

INSTALLATION

  1. Install the bumper (4) and install the bolts (1) and (3).

    2.
  2. Tighten the bolts (1) and (3) to 25 N·m (18.5 ft. lbs.).

    3.
