2014 Jeep Wrangler JK Factory Service Manual 19 - Steering

SHROUD, Steering Column, Lower

REMOVAL

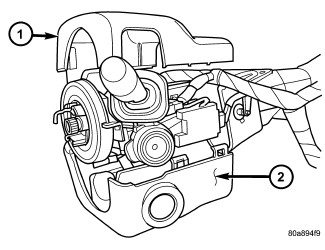

  1. Remove the three screws attaching the lower shroud (2) to the column.

    2.
  2. Separate the lower shroud (2) from the upper shroud (1) by pressing on the edges of the shrouds.

    3.
  3. Remove the lower shroud from the column.

    4.

INSTALLATION

  1. Install the lower shroud (2) into the upper shroud (1), clipping the shrouds to one another.

    2.
  2. Install the three screws attaching the lower shroud (2) to the column.

    3.
