2014 Jeep Wrangler JK Factory Service Manual 24 - Heating and Air Conditioning

SCREEN-AIR INLET

NOTE:

LHD model shown. RHD model similar.

  1. Remove the HVAC housing assembly (Refer to 24 - Heating and Air Conditioning/Distribution/HOUSING, HVAC - Removal) .

    2.

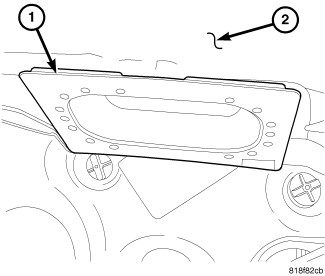

  2. Disengage the retaining tabs that secure the air inlet screen (1) to the passenger compartment side of the cowl panel (2).

    3.
  3. Pull the air inlet screen straight downward and remove the screen from the cowl panel.

    4.
