2014 Jeep Wrangler JK Factory Service Manual 23 - Body

BRACKET, Door Latch

REMOVAL

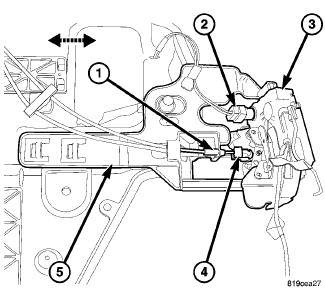

  1. Remove the latch (3), (Refer to 23 - Body/Door - Front/LATCH, Door - Removal) .

    2.
  2. Slide the latch bracket (5) off of the carrier plate tabs and remove.

    3.

INSTALLATION

  1. Slide the latch bracket (5) onto the carrier plate and secure fully.

    2.
  2. Install the latch (3). (Refer to 23 - Body/Door - Front/LATCH, Door - Installation) .

    3.
