HANDLE, Exterior

• REMOVAL
• INSTALLATION

REMOVAL

1. Remove the carrier plate. (Refer to 23 - Body/Door - Front/PLATE, Carrier - Removal) .

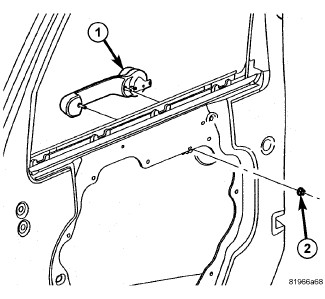

2. Remove the nut (2) and the handle (1).




INSTALLATION

1. Install the handle (1) and the front nut (2).


2. Tighten the nut to 4.5 N·m (40 in. lbs.).





3. Install the carrier plate. (Refer to 23 - Body/Door - Front/PLATE, Carrier - Installation) .
