HINGE, Door

REMOVAL

NOTE:

A suitable body sealant should be used when removing or moving the hinges.

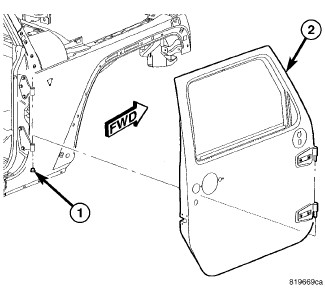

  1. Remove the door (2), (Refer to 23 - Body/Door - Front/DOOR - Removal) .

    2.

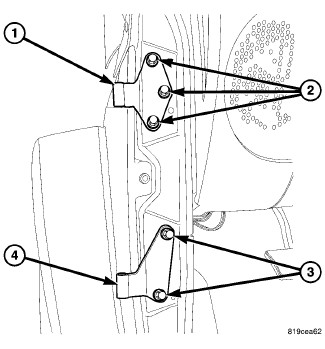

  2. Using a grease pencil or equivalent, mark the body hinge (1) and (4) location and remove the bolts (2) and (3).

    3.

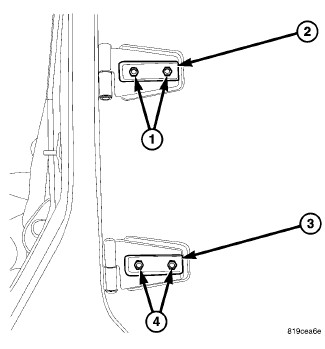

  3. Using a grease pencil or equivalent, mark the door hinge (2) and (3) location and remove the bolts (1) and (4).

    4.

INSTALLATION

NOTE:

A suitable body sealant should be used when removing or moving the hinges.

  1. Install the door hinges (2) and (3), and install the bolts (1) and (4).

    2.
  2. Align the hinges to the door using the reference marks made during the removal procedure and tighten the bolts to 26 N·m (19 ft. lbs.).

    3.
  3. Install the body hinges (1) and (4), and install the bolts (2) and (3).

    4.
  4. Align the hinges to the body using the reference marks made during the removal procedure and tighten the bolts to 24 N·m (18 ft. lbs.).

    5.
  5. Install the door (2), (Refer to 23 - Body/Door - Front/DOOR - Installation) .
