2014 Jeep Wrangler JK Factory Service Manual 23 - Body

REGULATOR, Window, Power

REMOVAL

  1. Remove the carrier plate. (Refer to 23 - Body/Door - Front/PLATE, Carrier - Removal) .

    2.
  2. Remove the screws (1) and disconnect the electrical connector (2).

    3.
  3. Remove the motor (3).

    4.

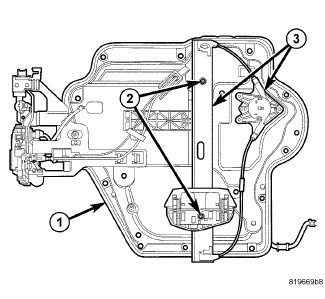

  4. Remove the rail screws (2) and separate the lift regulator (3) from the carrier plate (1).

    5.

INSTALLATION

  1. Position the regulator (3) onto the carrier plate (1) and install the screws (2).

    2.
  2. Install the motor (3) and the screws (1).

    3.
  3. Connect the electrical connector (2).

    4.
  4. Install the carrier plate. (Refer to 23 - Body/Door - Front/PLATE, Carrier - Installation) .

    5.
