2014 Jeep Wrangler JK Factory Service Manual 23 - Body

CYLINDER, Door Lock

REMOVAL

  1. Remove the latch (5), (Refer to 23 - Body/Door - Front/LATCH, Door - Removal) .

    NOTE:

    Full door shown, half door similar.


    2.

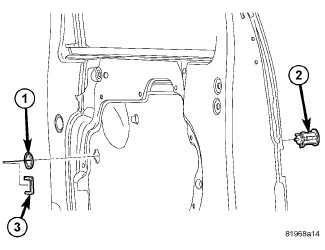

  2. Remove the clip (3) and separate the lock cylinder (2) and gasket (1) from the door.

    3.

INSTALLATION

NOTE:

Full door shown, half door similar.

  1. Assemble gasket (1) onto lock cylinder (2) until fully seated.

    2.
  2. Install lock cylinder (2) into hole in outer door panel.

    NOTE:

    Cylinder post must point forward.


    NOTE:

    Cylinder drain hole must point down.


    3.
  3. While holding lock cylinder (2) in place slide retainer clip (3) onto lock cylinder.

    NOTE:

    Visually verify that pin on lock cylinder is engaged with bell crank 0n door module at door module install.



    4.
  4. Install the latch (5), (Refer to 23 - Body/Door - Front/LATCH, Door - Installation) .

    5.
