2014 Jeep Wrangler JK Factory Service Manual 23 - Body

HANDLE, Exterior

REMOVAL

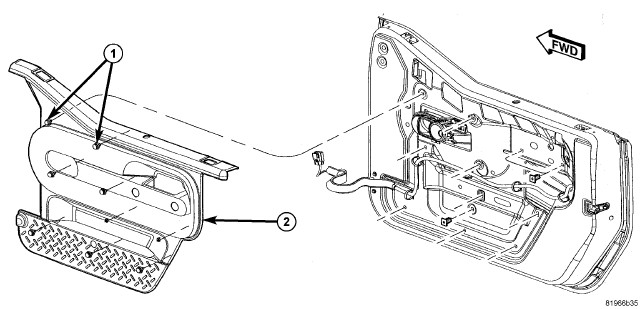

  1. Remove the door trim panel (2), (Refer to 23 - Body/Door - Front/PANEL, Door Trim - Removal) .

    2.

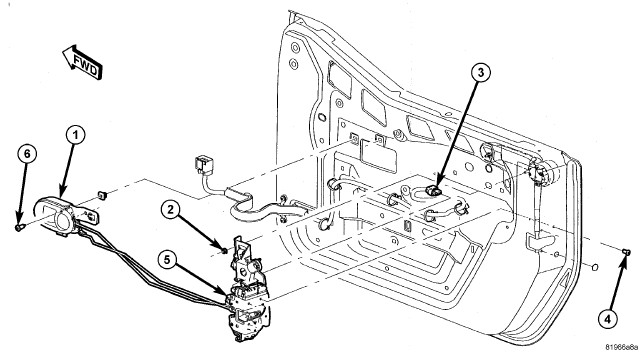

  2. Remove the latch nut (2).

    NOTE:

    Full front door shown, half door is similar.


    3.

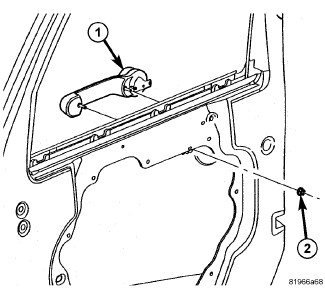

  3. Remove the remaining handle nut (2) and remove the handle (1).

    4.

INSTALLATION

  1. Install the handle (1) and install the front nut (2).

    2.
  2. Tighten the nut to 4.5 N·m (40 in. lbs.).

    3.
  3. Install the rear nut (2).

    4.
  4. Tighten the nut to 4.5 N·m (40 in. lbs.).

    5.
  5. Install the trim panel (2), (Refer to 23 - Body/Door - Front/PANEL, Door Trim - Installation) .

    6.
