2014 Jeep Wrangler JK Factory Service Manual 23 - Body

HANDLE, Exterior

REMOVAL

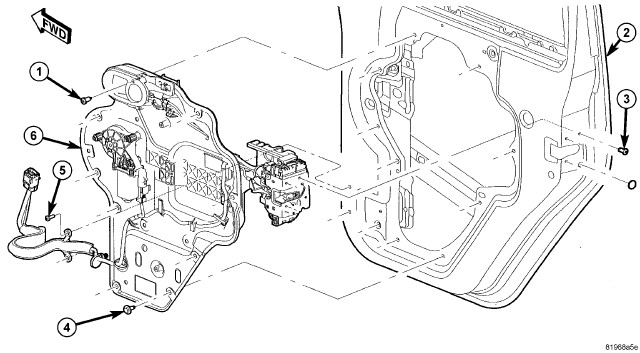

  1. Remove the carrier plate (6), (Refer to 23 - Body/Doors - Rear/PLATE, Carrier - Removal)


    2.

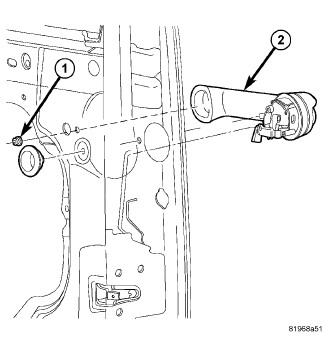

  2. Remove the nuts (1) and remove the handle (2).

    3.

INSTALLATION

  1. Install the handle (2) and install the nuts (1).

    2.
  2. Tighten the nuts to 4.5 N·m (40 in. lbs.).

    3.
  3. Install the carrier plate (6), (Refer to 23 - Body/Doors - Rear/PLATE, Carrier - Installation) .

    4.
