PANEL, Rear Door Trim

• REMOVAL
• INSTALLATION

REMOVAL

Special Tools: Click to display a list of tools used in this procedure

Click here to launch the form to order any tools you need.

	C-4755 - Trim Stick Originally Shipped In Kit Number(s) 9299, 9299CC, 9299CC, 9300A-CAN.
	C-4829A - Remover, Trim

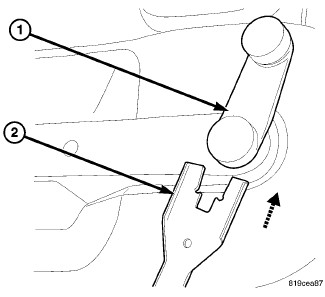

1. Using a standard window handle tool (2), release the handle clips and remove the handle (1) from the window lift mechanism, if equipped with a manual regulator.




2. Using trim stick C-4755 or equivalent, separate the inside handle bezel cap (2) from the bezel (1).

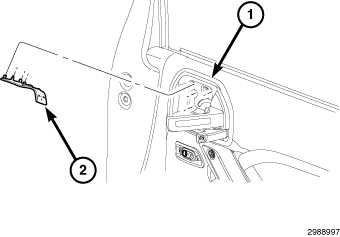

3. Using trim stick C-4755 or equivalent, remove the inside handle bezel (1).


4. Using trim stick C-4755 or equivalent, remove the grab handle bezel.


5. Remove the bolts (5) and remove the grab handle (3).

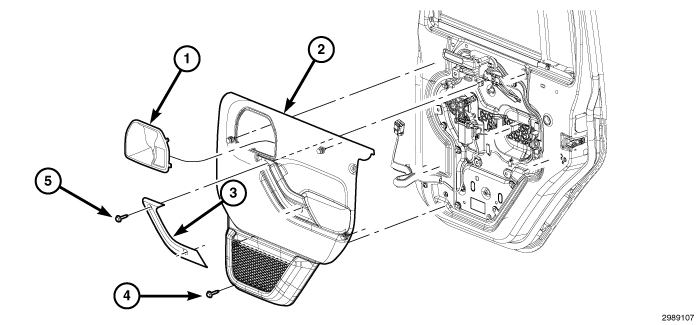

6. Remove the trim panel screws (4).


7. Using a trim tool C-4829A or equivalent,starting at the bottom by the check strap, separate the push pin fasteners and remove the trim panel (2).




INSTALLATION

1. Place top of panel (2) to door belt line and align locating pins to existing holes in inner door sheet metal.


2. Push in to secure using hand force and seat the retaining clips fully.


3. Install the grab handle (3) and install the bolts (5).


4. Position the grab handle bezel back into place on the grab handle and seat fully.


5. Install the screws (4).




6. Position the inside handle bezel cap (2) back into place onto the bezel (1) and seat fully.

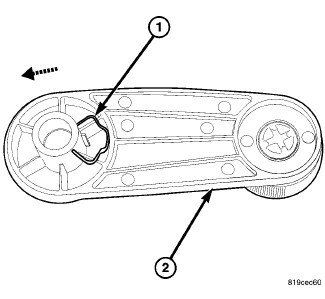

7. If equipped with a manual window regulator, position the window crank handle retaining clip (1) back into place and install the window crank handle (2) onto the lift mechanism shaft and seat fully.
