2014 Jeep Wrangler JK Factory Service Manual 23 - Body

REGULATOR, Window

REMOVAL

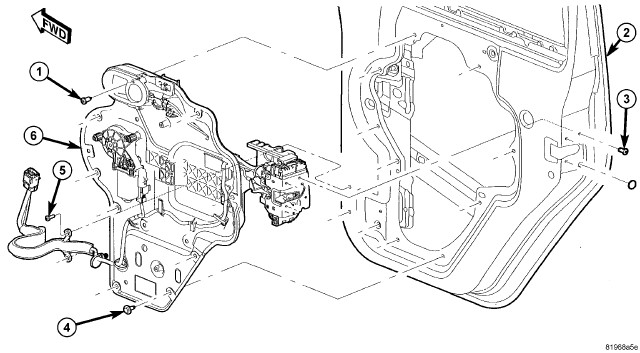

  1. Remove the carrier plate, (Refer to 23 - Body/Doors - Rear/PLATE, Carrier - Removal) .

    NOTE:

    Front door shown, rear door similar.


    2.
  2. Remove the screws (1) and disconnect the electrical connector (2).

    3.
  3. Remove the motor (3).

    4.

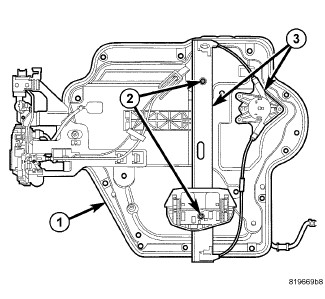

  4. Remove the rail screws (2) and separate the lift regulator (3) from the carrier plate (1).

    5.

INSTALLATION

NOTE:

Front door shown, rear door similar.

  1. Position the regulator (3) onto the carrier plate (1) and install the screws (2).

    NOTE:

    Front door shown, rear door similar.


    2.
  2. Install the motor (3) and install the screws (1).

    3.
  3. Connect the electrical connector (2).

    4.
  4. Install the carrier plate, (Refer to 23 - Body/Doors - Rear/PLATE, Carrier - Installation) .

    5.
