2014 Jeep Wrangler JK Factory Service Manual 23 - Body

HANDLE, Exterior

REMOVAL

  1. Remove the trim panel (1), (Refer to 23 - Body/Doors - Rear/PANEL, Rear Door Trim - Removal) .

    2.

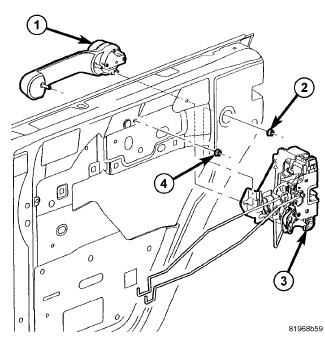

  2. Remove the handle nuts (4) and (2) and remove the handle (1).

    3.

INSTALLATION

  1. Install the handle (1) and install the nuts (4) and (2).

    2.
  2. Tighten the nuts to, 4.5 N·m (40 in. lbs.).

    3.
  3. Install the trim panel (1), (Refer to 23 - Body/Doors - Rear/PANEL, Rear Door Trim - Installation) .

    4.
