2014 Jeep Wrangler JK Factory Service Manual 09 - Engine, 2.8L Diesel

FLEXPLATE

REMOVAL

  1. Remove the transmission (Refer to 21 - Transmission and Transfer Case/Automatic - NAG1 - Removal) .

    2.
  2. Paint mark the flex plate hub to flex plate relation.

    3.

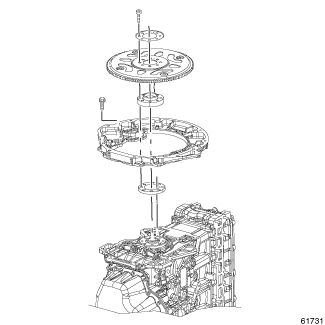

  3. Remove the 40 mm bolts (1) and flex plate (2).

    4.
  4. Inspect flex plate for damage.

    5.

INSTALLATION

NOTE:

Always use new bolts when installing the flex plate and do not lubricate new bolts as they are already coated with an anti-scuff treatment.


NOTE:

Align the flex plate to hub paint marks, where applicable.

  1. Install the flex plate and tighten bolts finger tight.

    2.
  2. Use a crisscross pattern to tighten bolts to 50 N·m (37 ft. lbs.).

    3.
  3. Using a torque wrench fitted with a Torque Angle Gauge, (Goniometer), loosen one flex plate bolt at a time and tighten to 25 N·m (19 ft. lbs.) plus angle in relation to bolt length.

    Bolt Length

    Torque Angle

    40 mm

    60°

    50 mm

    75°

    60 mm

    90°


    4.
  4. Install the transmission (Refer to 21 - Transmission and Transfer Case/Automatic - NAG1 - Installation) .

    5.
