GRILLE

• REMOVAL
• INSTALLATION

REMOVAL

Special Tools: Click to display a list of tools used in this procedure

Click here to launch the form to order any tools you need.

C-4755 - Trim Stick Originally Shipped In Kit Number(s) 9299, 9299CC, 9299CC, 9300A-CAN.

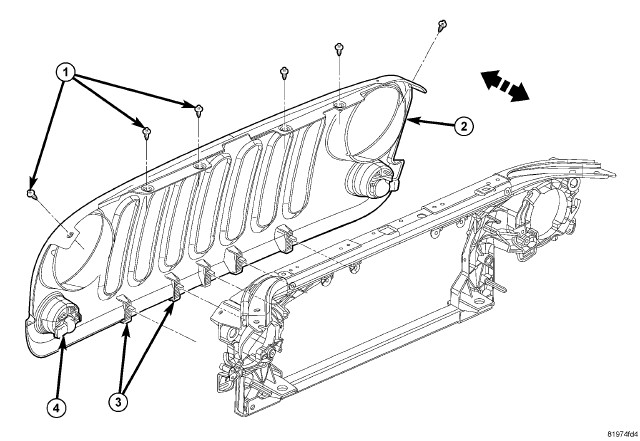

1. Twist the center of the push pin insert to release and remove the six push pin fasteners (1)


2. Using a trim stick C-4755 or equivalent, Release the lower clips (3) and separate the grille from the front end module.


3. Disconnect the electrical connectors (4).




INSTALLATION

1. Connect the electrical connectors (4).


2. Position the grille (2) onto the front end module and seat the clips (3) fully.


3. Install the push pin fasteners (1).
