HOUSING, Fuel Fill
REMOVAL
Special Tools: Click to display a list of tools used in this procedure
 |
-

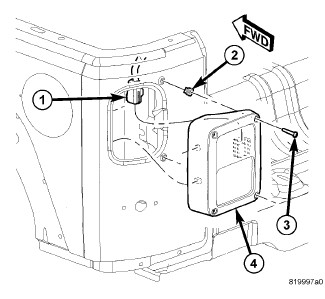

Remove the tail lamp (4). (Refer to 08 - Electrical/8L - Lamps and Lighting/Lamps/Lighting - Exterior/LAMP, Tail Stop Turn - Removal)

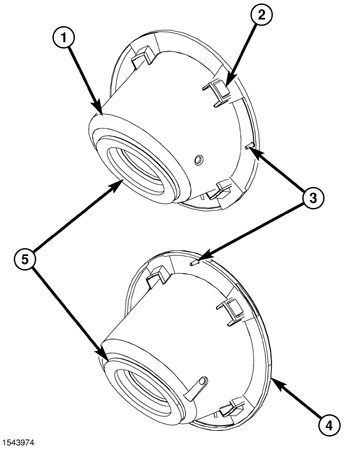

1 - LONG WHEEL BASE HOUSING
2 - RETAINING TABS
3 - ALIGNMENT PINS
4 - SHORT WHEEL BASE HOUSING
5 - FUEL FILLER TUBE GROMMIT
-
Release the retaining tabs (2).
-
Using trim stick C-4755 or equivalent, remove the fuel filler housing (1).
INSTALLATION
|
|
|
1 - LONG WHEEL BASE HOUSING 2 - RETAINING TABS 3 - ALIGNMENT PINS 4 - SHORT WHEEL BASE HOUSING 5 - FUEL FILLER TUBE GROMMIT |
- Locate the alignment pin (3).
-
Lubricate the fuel tube grommet (5) and tube with rose water or equivalent to aid installation.

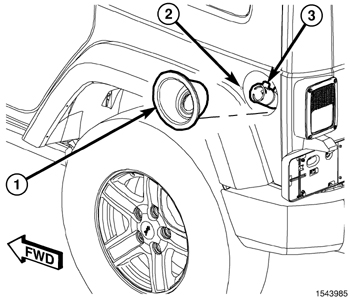

- Position the housing (1) over the filler tube (3).
- Align and insert the lower tabs of the housing (1).
- Carefully line up the locator pin and insert into the locator hole (2).
- Seat the remaining fastener tabs fully.
