MOLDING, Wheel Opening

• REMOVAL
• INSTALLATION

REMOVAL

Special Tools: Click to display a list of tools used in this procedure

Click here to launch the form to order any tools you need.

C-4755 - Trim Stick Originally Shipped In Kit Number(s) 9299, 9299CC, 9299CC, 9300A-CAN.

Front

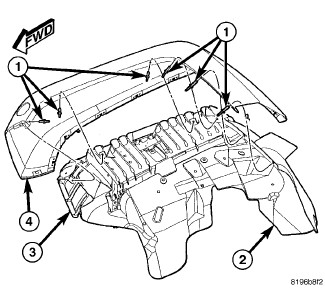

1. Remove the rivets (1) securing the fender flares (4) to the support (3).

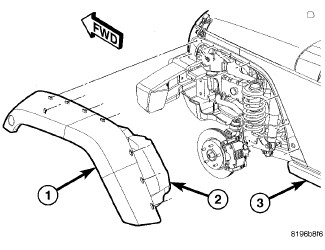

2. Using a trim stick C-4755 or equivalent, separate the clips attaching the flare (1) to the fender (3) and remove.


3. Disconnect the marker light electrical connector, if equipped.




Rear

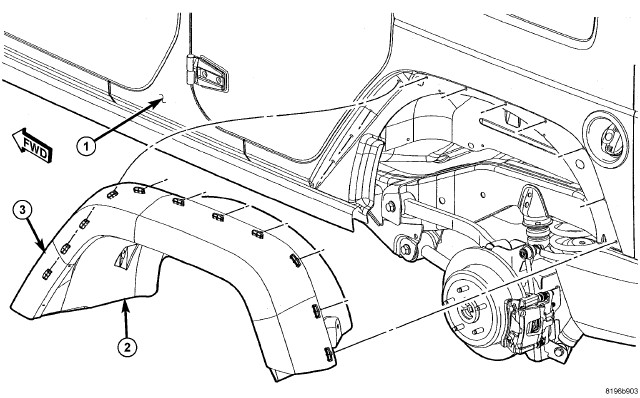

1. Remove the rivets (2) attaching the flare (1) to the wheelhouse liner (3).





2. Using a trim stick C-4755 or equivalent, separate the clips attaching the flare (3) to the body (1).




INSTALLATION

Front

1. Connect the marker light electrical connector, if equipped.


2. Position the flare (1) onto the body (3) and seat the support clips fully.




3. Install rivets (1) attaching the flare (4) to the support (3).




Rear

1. Position the flare (3) onto the body (1) and seat the support clips fully.




2. Install rivets (2) attaching the flare (1) to the wheelhouse splash shield (3)
