2014 Jeep Wrangler JK Factory Service Manual 23 - Body

SHIELD, Splash, Wheelhouse

REMOVAL


Front

  1. Raise and support the vehicle (Refer to 04 - Vehicle Quick Reference/Hoisting - Standard Procedure) .

    2.
  2. Remove the wheel and tire to gain access to the front wheel house liner.

    3.

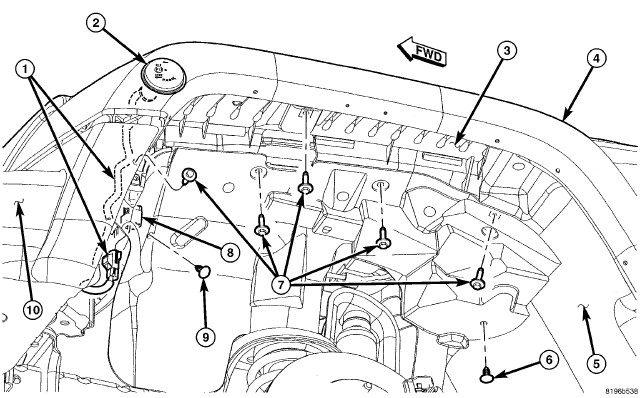

  3. Remove the all push/pins (6), (9) from the wheel house liner.

    4.
  4. Remove the all bolts (7) from the wheel house liner.

    5.
  5. Remove the wheel speed sensor harness (1) from the wheel house liner.

    6.
  6. Remove front wheel house liner from front wheel house opening.

    7.

Rear

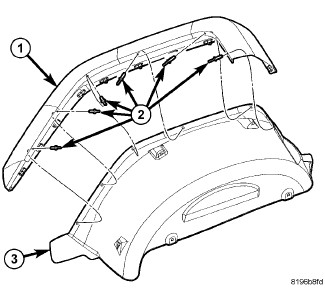

  1. Remove the wheel flare rivets (2).

    2.

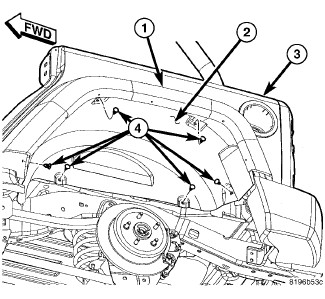

  2. Remove the push pin fasteners (4) and remove the splash shield (2).

    3.

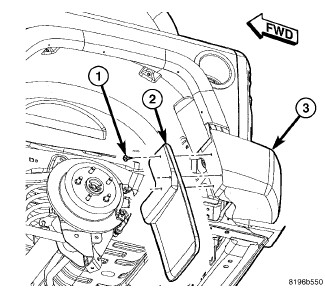

  3. Remove the screws and remove the splash guard (2) if equipped.

    4.

INSTALLATION


Front

  1. Install the front wheel house liner to front wheel house opening.

    2.
  2. Install the wheel speed sensor harness (1) to the wheel house liner.

    3.
  3. Install the push/pins (6), (9) to the wheel house liner.

    4.
  4. Install the all bolts (7) to the wheel house liner and tighten to specifications.

    5.
  5. Install wheel and tire and torque to specifications.

    6.

Rear

  1. If equipped, install the splash guard (2) and install the screws.

    2.
  2. Install the splash shield (2) and install the push pin fasteners (4).

    3.
  3. Install the flare molding rivets (2).

    4.
