2014 Jeep Wrangler JK Factory Service Manual 03 - Differential and Driveline

SWITCH, Axle Lock

REMOVAL

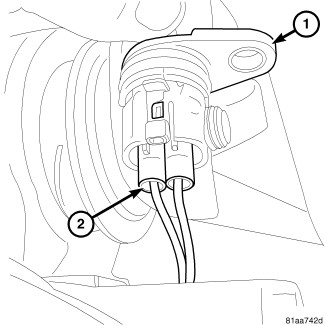

  1. Remove Tru-Lok harness from the coil connector (1) and indicator switch (2).

    2.
  2. Remove Tru-Lok coil connector (1) bolt.

    3.
  3. Remove Tru-Lok coil connector (1) from the axle housing and remove coil harness (2) from the connector (1).

    4.
  4. Remove differential.

    5.
  5. Remove Tru-Lok indictor switch (1) from differential housing (2).

    6.

INSTALLATION

  1. Install Tru-Lok indicator switch (1) into differential housing (2).

    2.
  2. Install differential.

    3.
  3. Install Tru-Lok coil connector (2) to the coil harness (1).

    4.
  4. Install Tru-Lok coil connector (1) and install bolt.

    5.
  5. Install Tru-Lok harness to the coil connector (1) and indicator switch (2).

    6.
