2014 Jeep Wrangler JK Factory Service Manual 23 - Body

HOOD

REMOVAL

  1. Raise hood.

    2.

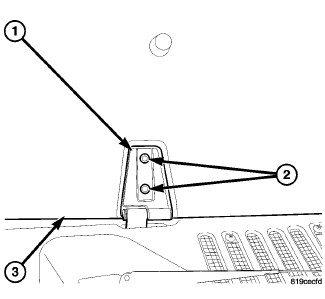

  2. Using a grease pencil or equivalent, mark location of hood hinges (1) on hood (3) to aid installation.

    3.
  3. Remove bolts (2) attaching hinges to hood.

    4.
  4. With the aid of a helper, remove hood (3) from vehicle.

    5.

INSTALLATION

NOTE:

The Vehicle Emission Control Information (VECI) label(s) must be in place for the life of the vehicle. When replacing the component in which the VECI label is adhered, a new VECI label must also be adhered to the new component.

  1. Position hood (3) on hinges (1).

    2.
  2. Install bolts (2) finger-tight.

    3.
  3. Align hinges with installation reference marks made previously and tighten bolts to 26 N·m (19 ft. lbs.).

    4.
  4. If required, adjust the hood to the correct position (Refer to 23 - Body/Body Structure/Gap and Flush - Specifications) .

    5.
