2014 Jeep Wrangler JK Factory Service Manual 23 - Body

LATCH, Safety

REMOVAL

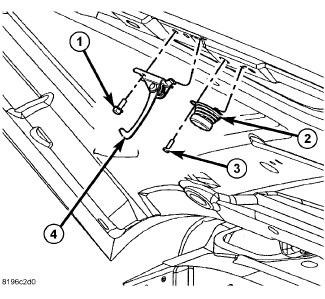

  1. Remove the bolt (1) and remove the safety catch (4).

    2.

INSTALLATION

  1. Install the safety catch (4) and install the bolt (1).

    2.
  2. Tighten the bolt to 11 N·m (8 ft. lbs.).

    3.
