SCREEN, Air Inlet

• REMOVAL
• INSTALLATION

REMOVAL

Special Tools: Click to display a list of tools used in this procedure

Click here to launch the form to order any tools you need.

C-4755 - Trim Stick Originally Shipped In Kit Number(s) 9299, 9299CC, 9299CC, 9300A-CAN.

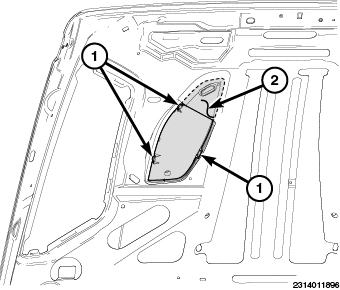

1. Open the hood, exposing underside of hood and air inlet screen (2).


2. Using C-4755 or equivalent, press the retaining tabs (1) securing the air inlet screen (2) to the hood.


3. Remove the air inlet screen (2) from hood.




INSTALLATION

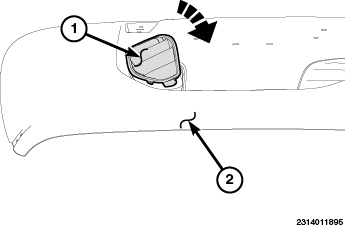

1. Align the air inlet screen (1) to the hood opening.


2. Press the side of the air inlet screen into the hood opening until the retaining tabs are fully seated and rotate the screen into the hood fully until an audible “snap” is heard.

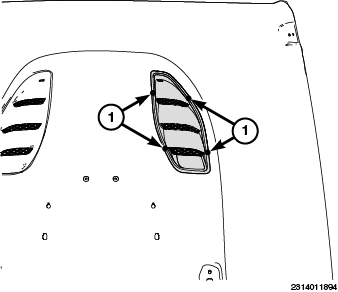

3. Verify all retaining tabs (1) are fully seated.
