BEZEL, Instrument Panel, Center

• REMOVAL
• INSTALLATION

REMOVAL

Special Tools: Click to display a list of tools used in this procedure

Click here to launch the form to order any tools you need.

C-4755 - Trim Stick Originally Shipped In Kit Number(s) 9299, 9299CC, 9299CC, 9300A-CAN.

1. Remove the cluster bezel. (Refer to 23 - Body/Instrument Panel/BEZEL, Instrument Cluster - Removal)

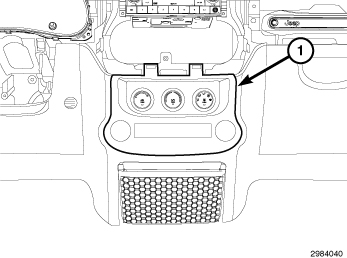

2. Using a trim stick C-4755 or equivalent, release the clips (2) and lower the center trim (1).


3. Disconnect the HVAC electrical connectors and remove the bezel. (Refer to 24 - Heating and Air Conditioning/Controls/CONTROL, A/C and Heater - Removal)



INSTALLATION

1. Connect the HVAC electrical connectors.


2. Position the center bezel (1) onto the I/P and seat the clips fully.


3. Install the cluster bezel. (Refer to 23 - Body/Instrument Panel/BEZEL, Instrument Cluster - Installation)
