2014 Jeep Wrangler JK Factory Service Manual 23 - Body

LOAD FLOOR, Non-Sliding

REMOVAL

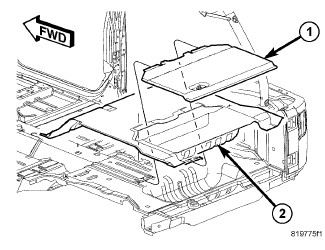

  1. Open the load floor cover (1) and pull rearward and remove from the floor slots.

    2.
  2. Remove the rear seats, (Refer to 23 - Body/Seats/SEAT - Removal)

    3.
  3. Remove the rear speaker if necessary.

    4.
  4. Remove the load floor carpet (2).

    5.

INSTALLATION

  1. Install the load floor carpet (2).

    2.
  2. Install the rear speaker.

    3.
  3. Install the rear seat, (Refer to 23 - Body/Seats/SEAT - Installation) .

    4.
  4. Position the cover (1) tabs into the floor slots fully and close the cover.

    5.
