2014 Jeep Wrangler JK Factory Service Manual 08 - Electrical

LAMP, Fog, Rear

BULB

NOTE:

The following procedure applies only to vehicles manufactured for export markets. Rear fog lamps are not available in vehicles manufactured for domestic markets.

  1. Disconnect and isolate the battery negative cable.

    2.

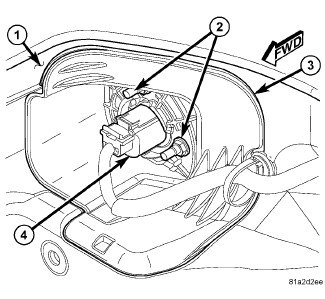

  2. Reach under and behind the outboard end of the rear bumper cover (1) to access the take out and connector (4) of the rear bumper wire harness on the back of the rear fog lamp housing.

    3.
  3. Firmly grasp the connector and socket on the back of the housing and rotate it counterclockwise about 30 degrees to unlock it.

    4.
  4. Pull the socket and bulb straight out from the keyed opening in the lamp housing.

    5.
  5. Pull the base of the bulb straight out of the socket.

    6.

LAMP

NOTE:

The following procedure applies only to vehicles manufactured for export markets. Rear fog lamps are not available in vehicles manufactured for domestic markets.

  1. Disconnect and isolate the battery negative cable.

    2.
  2. Raise and support the vehicle.

    3.
  3. From behind the outboard end of the rear bumper (1) disconnect the take out and connector (4) of the rear bumper wire harness from the rear fog lamp bulb socket.

    4.
  4. Remove the two nuts (2) that secure the two mounting studs on the lamp housing to the retainer cap (3) on the back of the rear bumper cover.

    5.
  5. Remove the lamp from the face of the rear bumper cover.

    6.

BULB

CAUTION:

Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket or the lamp wiring.




NOTE:

The following procedure applies only to vehicles manufactured for export markets. Rear fog lamps are not available in vehicles manufactured for domestic markets.

  1. Reach under and behind the outboard end of the rear bumper cover (1) to access the take out and connector (4) of the rear bumper wire harness connected to the rear fog lamp bulb socket near the back of the lamp housing.

    2.
  2. Align the base of the bulb with the lamp socket.

    3.
  3. Push the bulb straight into the socket until the base is firmly seated.

    4.
  4. Align the socket and bulb with the keyed opening on the back of the rear fog lamp housing.

    5.
  5. Insert the socket and bulb into the housing until the socket is firmly seated.

    6.
  6. Rotate the socket clockwise about 30 degrees to lock it into place.

    7.
  7. Reconnect the battery negative cable.

    8.

LAMP

NOTE:

The following procedure applies only to vehicles manufactured for export markets. Rear fog lamps are not available in vehicles manufactured for domestic markets.

  1. From the face of the rear bumper, position the rear fog lamp into the receptacle on the outboard end of the rear bumper cover (1).

    2.
  2. Engage the two mounting studs on the back of the lamp housing through the holes in the retainer cap (3) on the back of the rear bumper cover.

    3.
  3. Install and tighten the two nuts (2) that secure the lamp to the retainer cap. Tighten the nut to 1.5 N·m (14 in. lbs.).

    4.
  4. Reconnect the take out and connector (4) of the rear bumper wire harness to the bulb socket on the back of the lamp.

    5.
  5. Lower the vehicle.

    6.
  6. Reconnect the battery negative cable.

    7.
