2014 Jeep Wrangler JK Factory Service Manual 24 - Heating and Air Conditioning

A/C COMPRESSOR - 3.6L ENGINE

WARNING:

Review the warnings and cautions for this system before performing the procedure. Failure to follow these instructions may result in serious injury or death.

CAUTION:

The A/C receiver/drier must be replaced if an internal failure of the A/C compressor has occurred . Failure to replace the A/C receiver drier can cause serious damage to the replacement A/C compressor.



NOTE:

The A/C compressor may be removed and repositioned without disconnecting the refrigerant lines or discharging the refrigerant system. Discharging is not necessary if servicing the A/C clutch or engine.


  1. Disconnect and isolate the negative battery cable.

    2.
  2. Recover the refrigerant from the refrigerant system (Refer to 24 - Heating and Air Conditioning/Plumbing - Standard Procedure) .

    3.
  3. Remove the coolant recovery container (Refer to 07 - Cooling/Engine/BOTTLE, Coolant Recovery - Removal) .

    4.
  4. Disengage the harness brackets (3) from the frame rail and the stud on the A/C compressor (2).

    5.
  5. Disconnect the wire harness connector (1) from the Powertrain Control Module (PCM) (4) and position the wire harness out of the way.

    6.

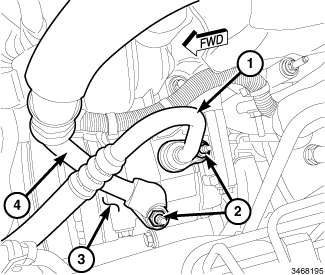

  6. Remove the nuts (2) that secure the A/C discharge line (1) and A/C suction line (4) to the A/C compressor (3).

    7.
  7. Disconnect the A/C refrigerant lines from the A/C compressor and remove and discard the O-ring seals and gaskets.

    8.
  8. Disconnect the engine wire harness from the A/C clutch coil connector


    9.
  9. Remove the accessory drive belt (Refer to 07 - Cooling/Accessory Drive/BELT, Serpentine - Removal) .

    NOTE:

    The two rear retaining bolts cannot be completely removed from the A/C compressor until the compressor is removed from the engine compartment.


    10.
  10. Support the A/C compressor (2) and remove the four bolts (1) that secure the compressor to the engine.

    11.
  11. Remove the A/C compressor from the engine compartment.

    12.
  12. Install plugs in, or tape over the open refrigerant line fittings and compressor ports.
