2014 Jeep Wrangler JK Factory Service Manual 23 - Body

HEADREST, Rear Four Door

REMOVAL

  1. Release the seat back and fold forward far enough to release the headrest.

    2.

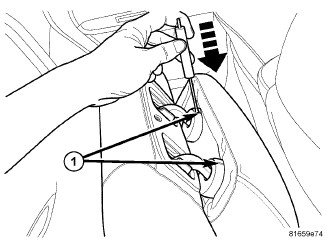

  2. Using a small flat bladed tool or equivalent, release the headrest by pressing the tool into the slots (1) on the trim caps.

    3.

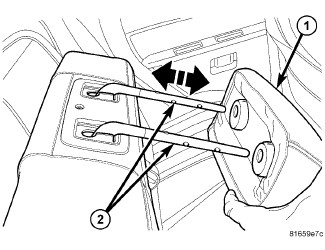

  3. Remove the headrest (1) from the headrest bracket and hinge (2).

    4.

INSTALLATION

  1. Position the headrest (1) onto the bracket and hinge assembly (2) and seat the headrest fully.

    2.
