2014 Jeep Wrangler JK Factory Service Manual 23 - Body

SEAT, Rear

DESCRIPTION

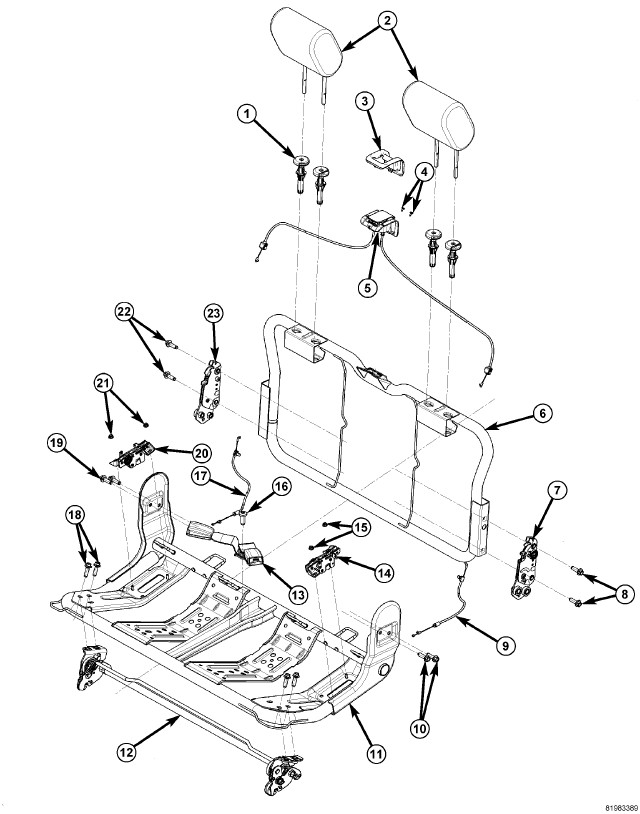

2 DOOR REAR

1 - HEADREST SLEEVES

13 - CENTER BELT BUCKLES

2 - HEADRESTS

14 - REAR LATCH – LEFT HAND

3 - RELEASE HANDLE BEZEL

15 - REAR LATCH NUTS 10 N·m (90 in. lbs.)

4 - RELEASE HANDLE SCREWS

16 - CENTER BELT BUCKLE BOLT 55 N·m (40.5 ft. lbs.)

5 - RELEASE HANDLE

17 - CABLE – BACK LATCH TO REAR FLOOR LATCH

6 - SEAT BACK FRAME

18 - FRONT LATCH CUSHION FRAME BOLTS 45 N·m (33 ft. lbs.)

7 - SEAT BACK LATCH

19 - BACK FRAME TO CUSHION ATTACHMENT BOLTS 50 N·m (37 ft. lbs.)

8 - SEAT BACK LATCH BOLTS 45 N·m (33 ft. lbs.)

20 - REAR LATCH – RIGHT HAND

9 - CABLE – BACK LATCH TO REAR FLOOR LATCH

21 - REAR LATCH NUTS 10 N·m (90 in. lbs.)

10 - BACK FRAME TO CUSHION ATTACHMENT BOLTS 50 N·m (37 ft. lbs.)

22 - SEAT BACK LATCH BOLTS 45 N·m (33 ft. lbs.)

11 - SEAT CUSHION FRAME

23 - SEAT BACK LATCH

12 - FRONT LATCH

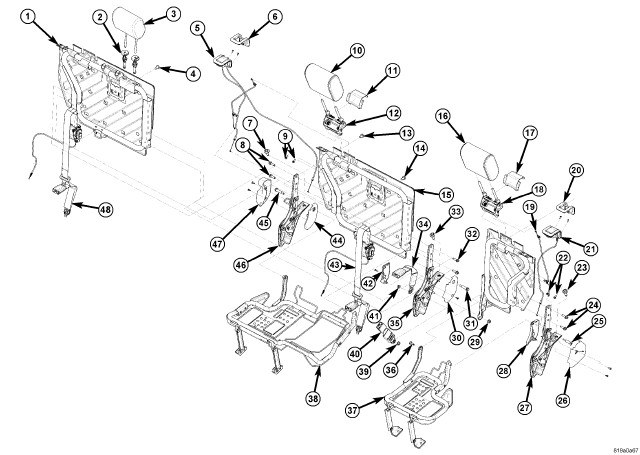

4 DOOR REAR
1 - 60% SEAT BACK FRAME - EXPORT 25 - SEAT CUSHION PIVOT BOLT 25 N·m (18.5 ft. lbs.)
2 - EXPORT HEADREST SLEEVES 26 - OUTER LATCH COVER
3 - HEADREST - EXPORT 27 - OUTBOARD LATCH
4 - RETRACTOR SCREW 55 N·m (40.5 ft. lbs.) 28 - INNER LATCH COVER
5 - RELEASE HANDLE 29 - 40% INNER SEAT BACK PIVOT NUT 25 N·m (18.5 ft. lbs.)
6 - RELEASE HANDLE BEZEL 30 - INNER LATCH COVER
7 - OUTBOARD LATCH FLOOR BOLTS 25 N·m (18.5 ft. lbs.) 31 - SEAT CUSHION PIVOT BOLT 25 N·m (18.5 ft. lbs.)
8 - LATCH TO BACK FRAME BOLTS 45 N·m (33 ft. lbs.) 32 - LATCH TO BACK FRAME BOLTS 45 N·m (33 ft. lbs.)
9 - HEADREST BOLTS 8 N·m (71 in. lbs.) 33 - INNER LATCH FLOOR BOLTS 25 N·m (18.5 ft. lbs.)
10 - HEADREST 34 - 60% INBOARD BUCKLE
11 - HEADREST BEZEL 35 - INBOARD LATCH
12 - HEADREST BRACKET AND HINGE 36 - SEAT CUSHION PIVOT BOLT 25 N·m (18.5 ft. lbs.)
13 - RETRACTOR SCREW 55 N·m (40.5 ft. lbs.) 37 - 40% SEAT CUSHION FRAME
14 - RETRACTOR SCREW 55 N·m (40.5 ft. lbs.) 38 - 60% SEAT CUSHION FRAME
15 - 60% SEAT BACK FRAME 39 - BELT BUCKLE NUT 45 N·m (33 ft. lbs.)
16 - HEADREST 40 - 40% INBOARD BUCKLE
17 - HEADREST BEZEL 41 - BELT BUCKLE NUT 45 N·m (33 ft. lbs.)
18 - HEADREST BRACKET AND HINGE 42 - INNER LATCH COVER
19 - HEADREST RELEASE CABLE 43 - SEAT BELT RETRACTOR
20 - RELEASE HANDLE BEZEL 44 - INNER LATCH COVER
21 - RELEASE HANDLE 45 - SEAT CUSHION PIVOT BOLT 25 N·m (18.5 ft. lbs.)
22 - HEADREST BOLTS 8 N·m (71 in. lbs.) 46 - OUTBOARD LATCH
23 - OUTBOARD LATCH FLOOR BOLTS 25 N·m (18.5 ft. lbs.) 47 - OUTER LATCH COVER
24 - LATCH TO BACK FRAME BOLTS 45 N·m (33 ft. lbs.) 48 - SEAT BELT RETRACTOR

REMOVAL


Two Door

  1. Remove the rear subwoofer (if equipped), (Refer to 08 - Electrical/8A - Audio and Video/SPEAKER - Removal).

    2.

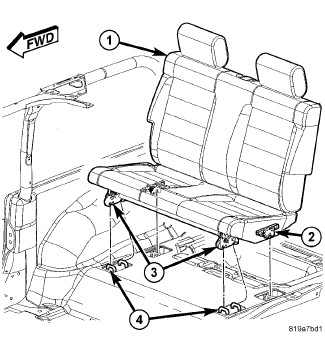

  2. Lift the seat back release lever and fold seat back forward and release the rear latches (2).

    3.
  3. Slowly flip the entire seat (1) forward.

    4.
  4. Press down on release bar on each side to release the front latches (3), and pull seat out and away from lower bracket (4).

    5.
  5. Remove seat from the vehicle.

    6.

Four Door

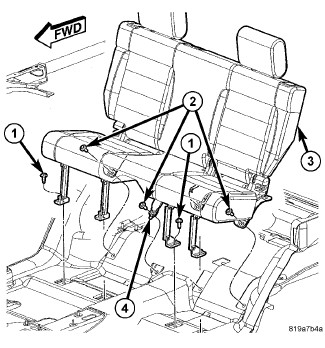

  1. Remove the four front leg bolts (1).

    2.
  2. Remove the front rear bracket bolts (2).

    3.
  3. Fold the seat backs (3) into the down position.

    4.
  4. Remove the center bracket bolt (3).

    5.
  5. Remove the outer bracket nuts (2) and remove the seat assembly through the tail gate.

    6.

INSTALLATION


Two Door

  1. Position the seat assembly into the vehicle and lock the rear of the front latches (3) into rear loop of the lower brackets (4).

    2.
  2. Lift the seat upright and lock the front of the front latches (3) into the front loop of the lower brackets (4).

    3.
  3. Position the seat assembly down and secure the rear latches (2).

    4.
  4. Lift the seat back (1) into the upright position to lock the rear latches (2).

    5.

Four Door

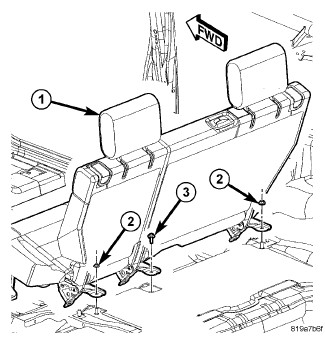

  1. Position the seat assembly into the vehicle and over the rear studs.

    2.
  2. Install the nuts (2) and tighten to 85 N·m (63 ft. lbs.).

    3.
  3. Install the bolt (3) and tighten to 75 N·m (55 ft. lbs.).

    4.
  4. Install the rear bracket front screws (2) and tighten to 75 N·m (55 ft. lbs.).

    5.
  5. Install the front bracket screws (1) and tighten to 75 N·m (55 ft. lbs.).

    6.
  6. Install the center belt buckle (4) and make sure the tab is lined up with the slot in the plate.

    7.
  7. Install the buckle bolt and tighten to 75 N·m (55 ft. lbs.).

    8.
