2014 Jeep Wrangler JK Factory Service Manual 21 - Transmission and Transfer Case

SEAL, Output Shaft, Front

REMOVAL

  1. Raise vehicle.

    2.
  2. Remove front propeller shaft. (Refer to 03 - Differential and Driveline/Propeller Shaft/SHAFT, Drive - Removal)

    3.
  3. Remove front output shaft companion flange.

    4.

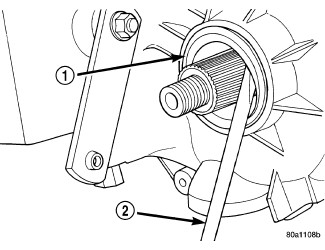

  4. Remove seal (1) from front case with pry tool (2) .

    5.

INSTALLATION

Special Tools: Click to display a list of tools used in this procedure

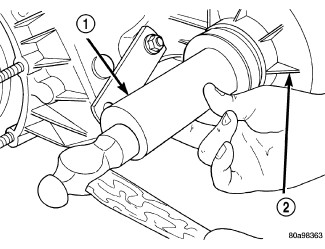

  1. Install new front output seal in front case (2) with Seal Installer 6952A (1) as follows:

    1. Place new seal on tool. Garter spring on seal goes toward interior of case.

      2.
    2. Start seal in bore with light taps from hammer. Once seal is started, continue tapping seal into bore until installer tool seats against case.

      3.

    2.
  2. Install the front output shaft companion flange. Tighten the companion flange nut to 149 N·m (110 ft.lbs.).

    3.
  3. Install the front propeller shaft. (Refer to 03 - Differential and Driveline/Propeller Shaft/SHAFT, Drive - Installation)

    4.
