International Vehicle Control and Display Symbols
DESCRIPTION
Chrysler LLC uses international symbols to identify various systems on the vehicle.
The graphic symbols illustrated are used to identify various instrument controls, vehicle controls and service information references. The symbols correspond to the controls and displays that are located on the instrument panel and throughout the vehicle.

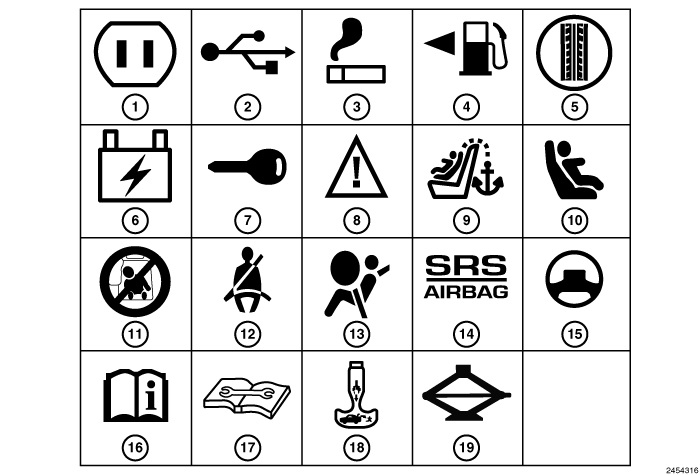

 INFORMATION SYMBOLS |
INTERNATIONAL INFORMATION SYMBOL IDENTIFICATION
|
SYMBOL |
DESCRIPTION |
SYMBOL |
DESCRIPTION |
|---|---|---|---|
|
1 |
115-Volt Power Inverter |
11 |
Side Airbag |
|
2 |
USB Connector |
12 |
Seat Belt |
|
3 |
Lighter |
13 |
Airbag |
|
4 |
Fuel Fill Side |
14 |
Supplemental Restraint System |
|
5 |
Spare Tire Winch |
15 |
Power Steering Fluid |
|
6 |
Fuse |
16 |
See Owner's Manual |
|
7 |
Key Activate (Power Outlet) |
17 |
See Appropriate Service Manual Section |
|
8 |
Warning |
18 |
Emergency Release Handle |
|
9 |
Child Seat Tether Anchor |
19 |
Jack/Jack Tools Location |
|
10 |
Lower Anchors and Tether for Children (latch) |

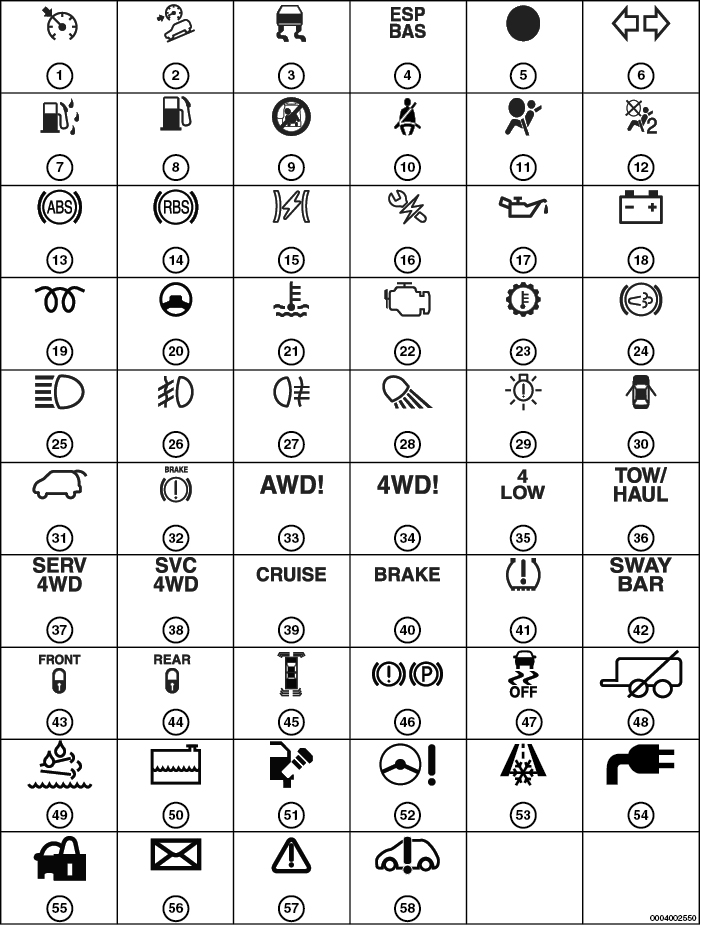

 Figure 1 - INDICATOR SYMBOLS |
INTERNATIONAL INDICATOR SYMBOL IDENTIFICATION
|
SYMBOL |
DESCRIPTION |
SYMBOL |
DESCRIPTION |
|---|---|---|---|
|
1 |
Electronic Speed Control |
30 |
Door Ajar |
|
2 |
Hill Descent Control |
31 |
Liftgate Open |
|
3 |
Traction Control |
32 |
Brake System Warning Parking Brake |
|
4 |
Electronic Stability Program/Brake System Assist System |
33 |
All Wheel Drive |
|
5 |
Security Indicator |
34 |
Four Wheel Drive |
|
6 |
Turn Signals |
35 |
Four Wheel Drive Low |
|
7 |
Water In Fuel |
36 |
Tow/Haul |
|
8 |
Low Fuel |
37 |
Service Four Wheel Drive |
|
9 |
Side Airbag |
38 |
Service Four Wheel Drive |
|
10 |
Seat Belt Reminder |
39 |
Cruise Indicator |
|
11 |
Airbag Warning Light |
40 |
Brake System Warning Parking Brake |
|
12 |
Passenger Airbag Off |
41 |
Tire Pressure Monitor |
|
13 |
Failure Of Anti-Lock Braking System |
42 |
Sway Bar Disconnect Indicator |
|
14 |
HEV Brake Regenerative Light |
43 |
Front Axle Lock |
|
15 |
Electronic Throttle Control |
44 |
Rear Axle Lock |
|
16 |
HEV Service Light |
45 |
Park Asist Indicator |
|
17 |
Engine Oil |
46 |
Park Brake Indicator |
|
18 |
Battery Charging |
47 |
Electronic Stability Control/Traction Control Off |
|
19 |
Glow Plug/Intake Air Heated |
48 |
Trailer Brake System Off |
|
20 |
Power Steering Fluid |
49 |
Diesel Exhaust Fluid |
|
21 |
Engine Coolant Temperature |
50 |
Coolant Level |
|
22 |
Malfunction Indicator Light |
51 |
Fuel Cap |
|
23 |
Transmission Oil Temperature Light |
52 |
EPS (Electric Power Steering) |
|
24 |
Diesel Exhaust Brake |
53 |
Icy Road Condition |
|
25 |
High Beam |
54 |
Electric Vehicle Plug In State |
|
26 |
Front Fog Light |
55 |
Vehicle Theft Alarm |
|
27 |
Rear Fog Light |
56 |
Stored Warnings |
|
28 |
Cargo Lamp |
57 |
Service ETC |
|
29 |
Exterior Bulb Failure |
58 |
Electric Vehicle System Service |

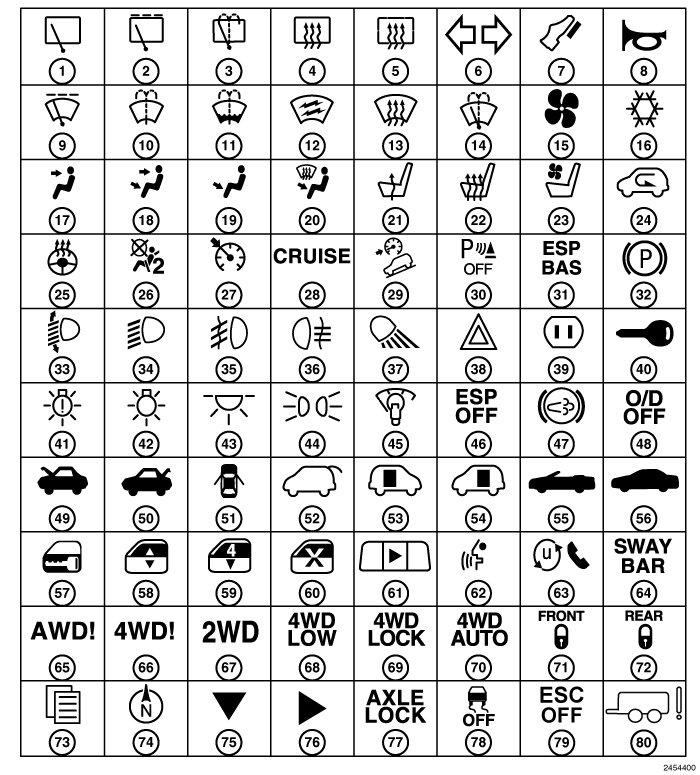

 CONTROL SYMBOLS |
INTERNATIONAL CONTROL SYMBOL IDENTIFICATION
|
SYMBOL |
DESCRIPTION |
SYMBOL |
DESCRIPTION |
SYMBOL |
DESCRIPTION |
|---|---|---|---|---|---|
|
1 |
Rear Window Wiper |
26 |
Passenger Air Bag Off |
51 |
Door Ajar |
|
2 |
Rear Window Intermittent Wiper |
27 |
Electronic Speed Control |
52 |
Liftgate Release |
|
3 |
Rear Window Washer |
28 |
Cruise Indicator |
53 |
Sliding Door |
|
4 |
Rear Window Defrost |
29 |
Hill Descent Control |
54 |
Sliding Door |
|
5 |
Heated Mirror |
30 |
Park Assist Off |
55 |
Convertible Top Down |
|
6 |
Turn Signals |
31 |
Electronic Stability Program/Brake System Assist System |
56 |
Convertible Top Up |
|
7 |
Adjustable Pedals |
32 |
Park Brake Release |
57 |
Door Lock |
|
8 |
Horn |
33 |
Adjustable Headlights |
58 |
Window Lift |
|
9 |
Windshield Wiper Intermittent |
34 |
Low Beam |
59 |
Convertible 4 Window Down |
|
10 |
Windshield Washer |
35 |
Front Fog Light |
60 |
Window Lock |
|
11 |
Windshield Washer Fluid Level |
36 |
Rear Fog Light |
61 |
Power Rear Window |
|
12 |
Windshield Electrically Heated |
37 |
Cargo Lamp |
62 |
Voice Recognition Button |
|
13 |
Windshield Defrost |
38 |
Hazard Lights |
63 |
Uconnect™ Button |
|
14 |
Windshield Wiper And Washer |
39 |
115-Volt Power Inverter |
64 |
SwayBar Disconnect |
|
15 |
Ventilating Fan |
40 |
Key Activate (Power Outlet) |
65 |
All Wheel Drive |
|
16 |
Air Conditioning |
41 |
Exterior Bulb Failure |
66 |
Four Wheel Drive |
|
17 |
Upper Air Outlet |
42 |
Master Lighting Switch |
67 |
Two Wheel Drive |
|
18 |
Upper And Lower Air Outlet |
43 |
Dome Light |
68 |
Four Wheel Drive Low |
|
19 |
Lower Air Outlet |
44 |
Park Lights |
69 |
Four Wheel Drive Lock |
|
20 |
Defrost And Lower Air Outlet |
45 |
Instrument Panel Illumination |
70 |
Four Wheel Drive Auto |
|
21 |
Heated Seat Low |
46 |
Electronic Stability Program Off |
71 |
Front Axle Lock |
|
22 |
Heated Seat High |
47 |
Diesel Exhaust Brake |
72 |
Rear Axle Lock |
|
23 |
Ventilated Seat |
48 |
Overdrive Off |
73 |
EVIC Menu |
|
24 |
Recirculation |
49 |
Hood Release |
74 |
Navigation Button |
|
25 |
Heated Steering Wheel |
50 |
Trunk/Deck Release |
75 |
Step |
|
76 |
Reset |
77 |
Axle Lock Button |
78 |
Traction Control Off |
|
79 |
Electronic Stability Control Off |
80 |
Trailer Brakes |

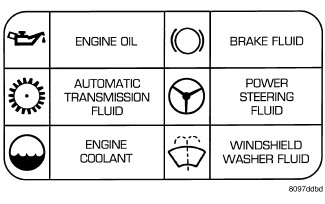

ENGINE COMPARTMENT
 |
The graphic symbols illustrated are used to identify engine compartment lubricant and fluid inspection and fill locations. The symbols correspond to the caps located within the engine compartment.
