PLYMOUTH VOYAGER

MODEL	YEAR(S
VOYAGER	1996-2000

KEY	T-HARNESS	IMMOBILIZER
N/A	CHR-2	N/A

PART	COLOR	LOCATION	DIAGRAM
12 VOLT CONSTANT	RED (+)	IGNITION SWITCH HARNESS
STARTER	YELLOW (+)	IGNITION SWITCH HARNESS
STARTER 2	N/A
IGNITION 1	DARK BLUE (+)	IGNITION SWITCH HARNESS
IGNITION 2	N/A
IGNITION 3	N/A
ACCESSORY/HEATER BLOWER 1	BLACK/ORANGE (+)	IGNITION SWITCH HARNESS
ACCESSORY/HEATER BLOWER 2	N/A
KEYSENSE	N/A
PARKING LIGHTS ( - )	GREEN/WHITE (-) or GREEN/RED (-) See NOTE *1	@ HEADLIGHT SWITCH, See DIAGRAM	30169_VOYAGER_CHRYSLER MINI VAN 96 - 00 NEGATIVE PARKING LIGHT DIAGRAM.pdf
PARKING LIGHTS ( + )	See NOTE *1	@ MARKER LIGHT out under HOOD
POWER LOCK	WHITE/GREEN (1-Wire System) See NOTE *2	@ LEFT Plug, Bottom of FUSEBOX	14301_VOYAGER_CHRYSLER MINI VAN 96 - 00 1 WIRE JBS UNITS.pdf
POWER UNLOCK	Same wire, See DIAGRAM	See DAIGRAMS	14301_VOYAGER_CHRYSLER MINI VAN 96 - 00 1 WIRE ALERT SHELBY UNITS.pdf
LOCK MOTOR WIRE	BROWN (+)	@ TOP LEFT PLUG, @ FUSE BOX
DOOR TRIGGER	BROWN/LIGHT GREEN (-)	@ DOMELIGHT, ON/OFF SWITCH
DOMELIGHT SUPERVISION	USE DOOR TRIGGER, Requires Part #775 Relay
TRUNK RELEASE	N/A
SLIDING POWER DOOR	N/A
HORN	GRAY/ORANGE (-)	@ TOP RIGHT plug, @ FUSEBOX
TACH	GRAY or GRAY/RED	@ IGNITION COIL
WAIT TO START LIGHT	N/A
BRAKE	WHITE/TAN (+)	@ SWITCH ABOVE BRAKE PEDAL
FACTORY ALARM DISARM	REARMS with LOCK and UNLOCK See DIAGRAM	Uses DOOR LOCK and UNLOCK wires	30169_VOYAGER_CHRYSLER MINI VAN 96 - 00 REARM CIRCUIT.pdf
ANTI-THEFT	N/A

NOTES

NOTE *1 The PARKING LIGHTS on this vehicle are a (-)Negative type and will require an extra Relay Part #775, to connect, See DIAGRAM. You can find a (+)Positive Parking Light wire at the Marker Lights out under the hood and make the connection there without adding the extra relay Part #775. NOTE *2 This vehicle uses a 1-Wire DOOR LOCKING SYSTEM and will require extra parts. To Lock requires a (-)Negative thru a 1500, Arm requires a (-)Negative thru a 4020 Ohm Resistor and to Unlock requires a (-)Negative thru a 250 Ohm Resistor and Disarm requires a (-)Negative thru a 665 Ohm Resistor. Some units will also require (2) extra relays Part #775, to connect, See DIAGRAM NOTE *3 you will need to UNLOCK THE VEHICLE, before Remote Starting to keep the Factory Security from sounding the horn, to connect, See DIAGRAM.

LINK 1	LINK TEXT 1	LINK 2	LINK TEXT 2

EXTRA INFORMATION

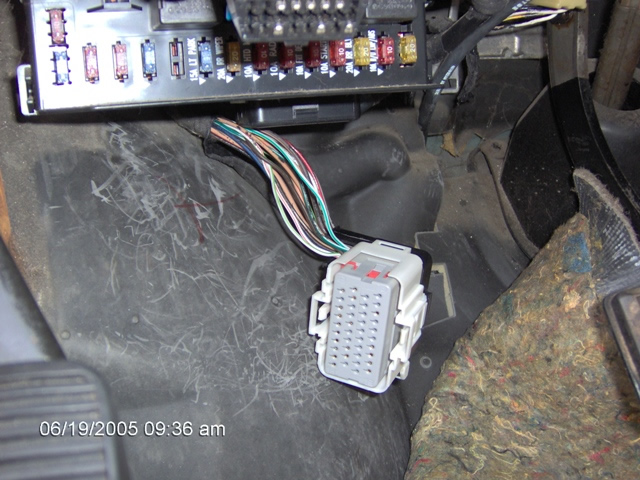

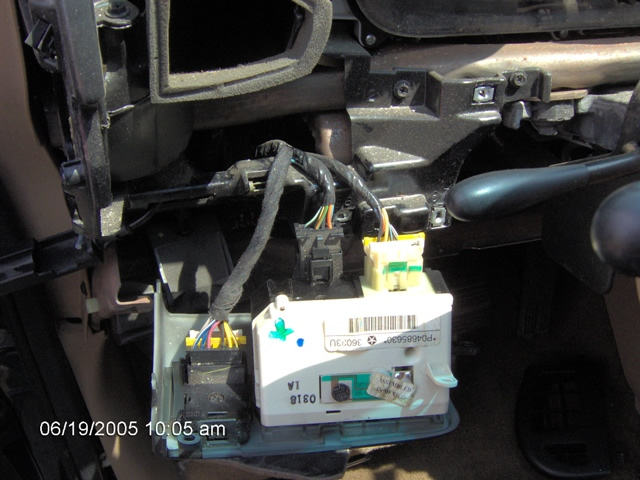

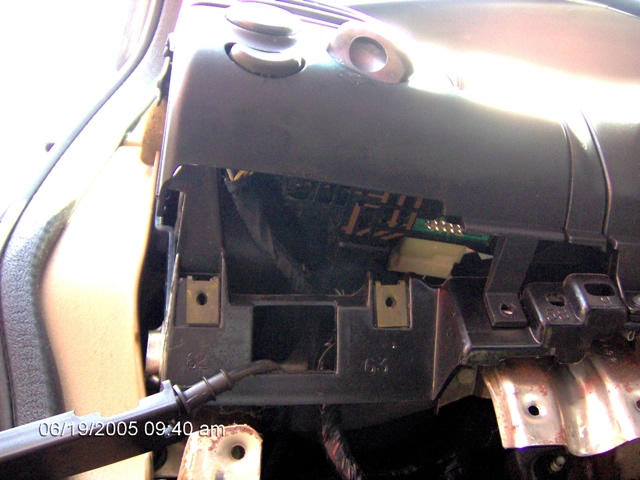

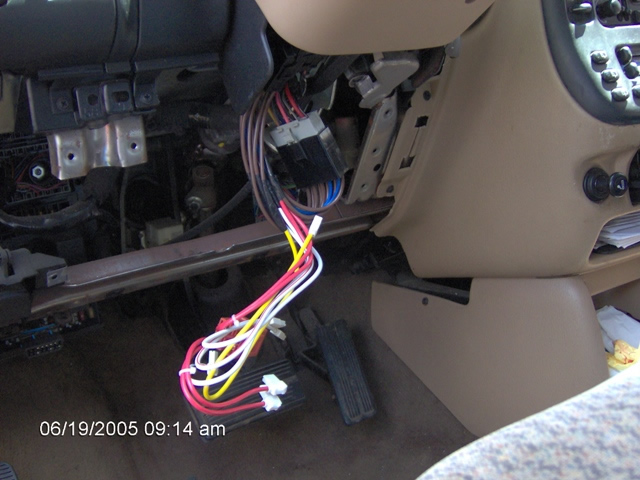

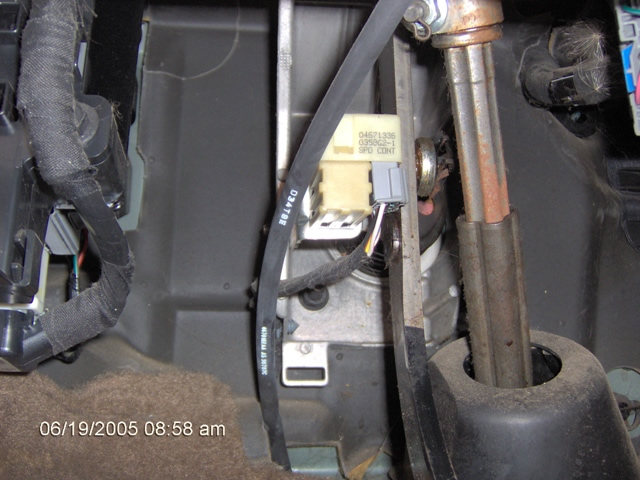

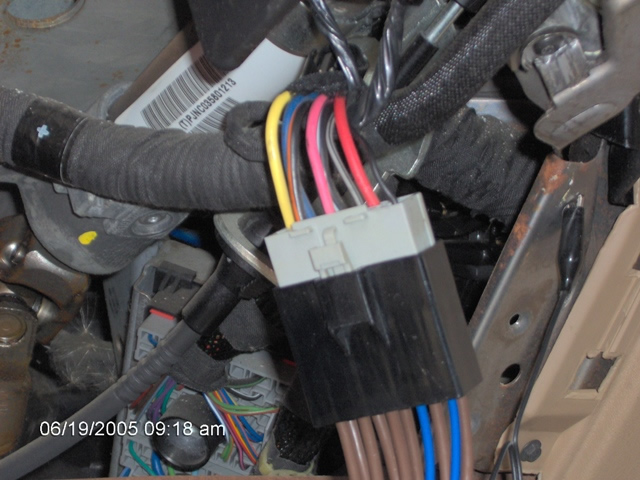

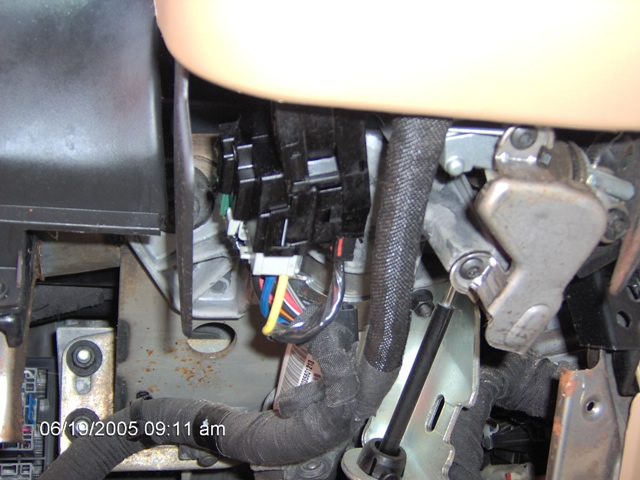

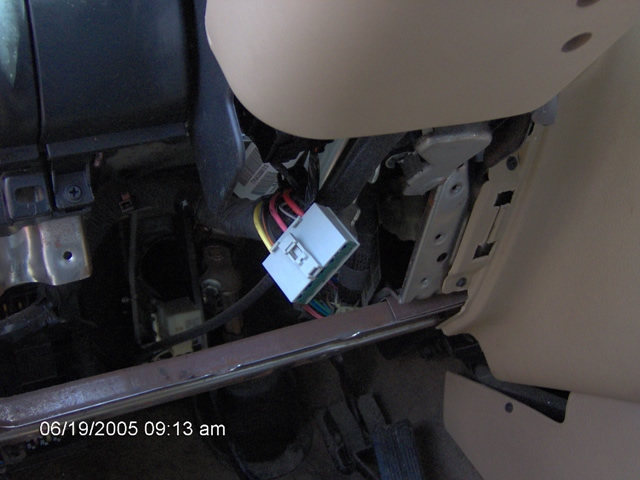

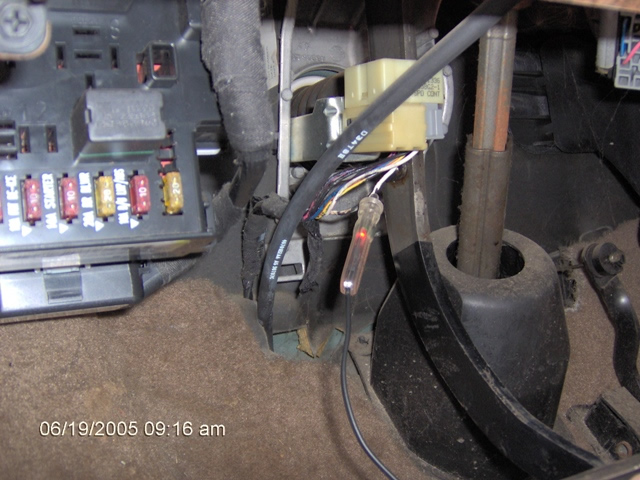

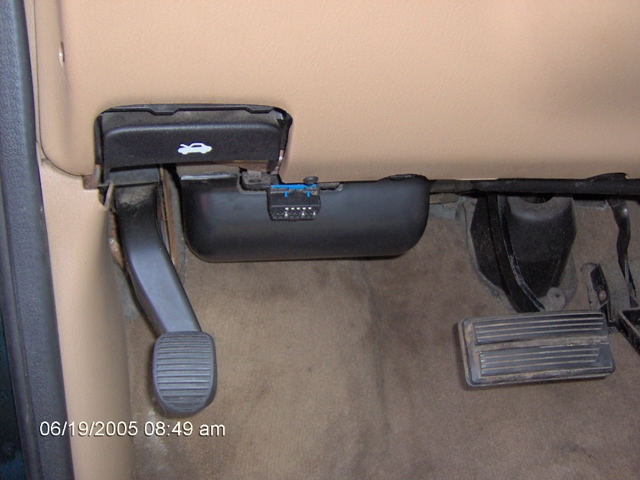

Show Large Image This picture shows the BCM Plug #1 pulled out of Its socket under the BCM/FUSEBOX. Show Large Image This picture shows the BRAKE SWITCH and BRAKE SWITCH wire, next to the Brake Pedal, under the dash. Show Large Image This picture shows the correct BRAKE wire being tested at the Brake Switch under the dash. Show Large Image This picture shows an opening under the dash where you can get to the (-)Negative Parking Light wire that is going to the Headlight Assembly on the dash without removing the Headlight Assembly. Show Large Image This picture shows the Headlight Assembly removed from the Dash. You will find the (-)Negative Parking Light wire in 1 of the 2 plugs that are plugged into the larger WHITE Module on this assembly. Show Large Image This picture shows the IGNITION SWITCH HARNESS Plug, it has been removed from the IGNITION SWITCH so that a T-harness can be plugged in. Show Large Image This picture shows the IGNITION SWITCH Harness and the wire colors of that harness Show Large Image This picture shows the T-HARNESS (CHR-2) connected to both side of the IGNITION SWITCH HARNESS on this vehicle. Show Large Image This picture shows the IGNITION SWITCH HARNESS Plug where it plugs into the IGNITION SWITCH of the vehicle. Show Large Image This picture show Plug #1 from the BCM, this is the plug that contains the LOCK/UNLOCK wire for this vehicle. If you look closely you can see the WHITE/DARK GREEN and WHITE/LIGHT GREEN wires for the Door locks on this vehicle, you can use either wire. Show Large Image This pictures shows the BOTTOM HALF of the DRIVERS DASH. Under the dash and behind that BLACK hump is located the BCM/FUSEBOX, the Plug that contains the POWER DOOR LOCK/UNLOCK wire will be in Plug #1 that plug is the plug on the lefthand side of the BCM.
