AIR CONDITIONING PANEL > INSTALLATION

for Preparation Click here



1. INSTALL CENTER CLUSTER MODULE CIRCUIT

  1. Engage the 2 guides and install the center cluster module circuit.



2. INSTALL LOWER HEATER CONTROL BASE

  1. Install the lower heater control base with the 8 screws.



3. INSTALL AIR CONDITIONING CONTROL ASSEMBLY

  1. Connect the connector.

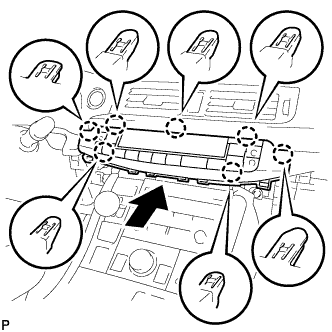

    E220732

  1. Engage the 7 claws to install the air conditioning control assembly.



4. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL


    B271367

  1. Engage the 4 guides and 7 claws to install the lower center instrument panel finish panel.

  1. Close the glove compartment door.
