ROOF HEADLINING > DISASSEMBLY

for Preparation Click here



1. REMOVE VANITY LIGHT ASSEMBLY

  1. Remove the vanity light assembly .

    HINT:
    Use the same procedure for the other vanity light.



2. REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY

  1. Peel back the tape used to secure the antenna cord only to the extent that allows removal of the No. 2 antenna cord sub-assembly.

    HINT:
    Tape is not available as a supply part. Try to leave as much tape as possible on the roof headlining so that the tape can be reused.



  1. Remove the No. 2 antenna cord sub-assembly from the roof headlining.


    E220162E01


    Text in Illustration
    *1
    		Tape
    		-
    		-
    *a
    		Front Side
    		-
    		-



3. REMOVE NO. 1 ROOF WIRE

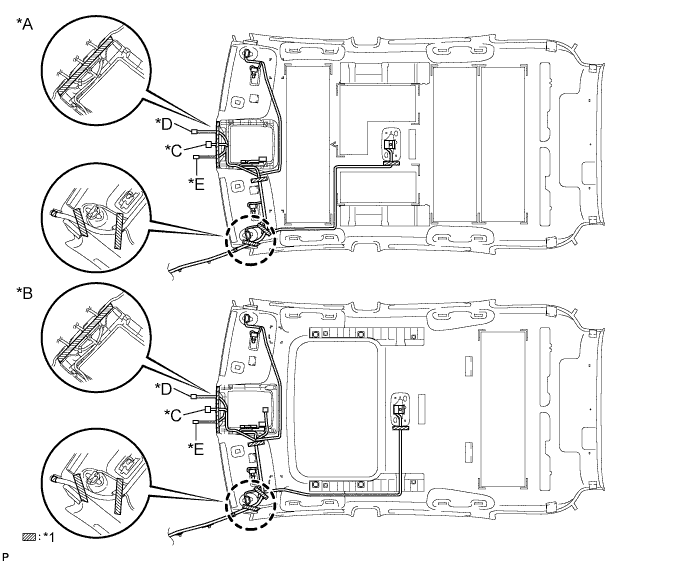

  1. Remove the adhesive tape from the roof headlining assembly.


    B270594E01


    Text in Illustration
    *A
    		w/o Sliding Roof
    		*B
    		w/ Sliding Roof
    *C
    		w/ EC Mirror
    		*D
    		w/ Rain Sensor (for LHD), w/ Humidity Sensor (for RHD)
    *E
    		w/ Humidity Sensor (for LHD), w/ Rain Sensor (for RHD)
    		-
    		-
    *1
    		Adhesive Tape
    		-
    		-
    Turn the visor connectors counterclockwise approximately 90° and separate the connectors and each clamp from the roof headlining assembly.

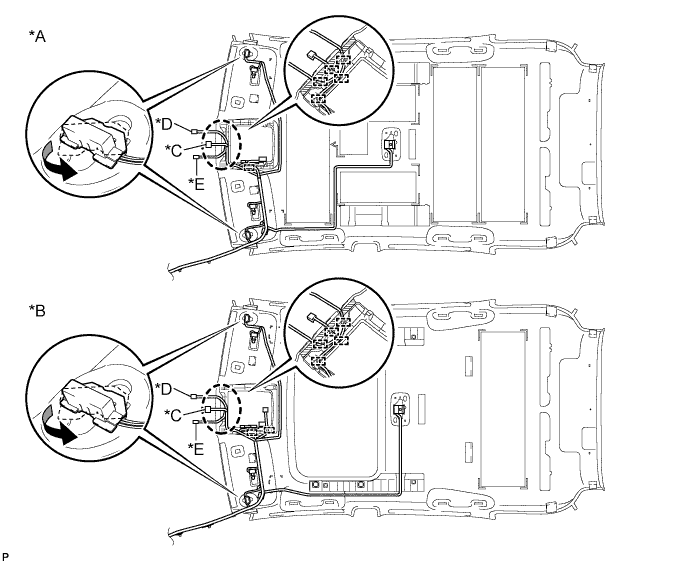

  1. Remove the No. 1 roof wire from the roof headlining assembly.


    B270600E01


    Text in Illustration
    *A
    		w/o Sliding Roof
    		*B
    		w/ Sliding Roof
    *C
    		w/ EC Mirror
    		*D
    		w/ Rain Sensor (for LHD), w/ Humidity Sensor (for RHD)
    *E
    		w/ Humidity Sensor (for LHD), w/ Rain Sensor (for RHD)
    		-
    		-



4. REMOVE NO. 1 ROOF SILENCER PAD (w/o Sliding Roof)


  1. Remove the No. 1 roof silencer pad from the roof headlining assembly.


    B270608



5. REMOVE NO. 3 ROOF SILENCER PAD (w/o Sliding Roof)


  1. Remove the No. 3 roof silencer pad from the roof headlining assembly.


    B270610



6. REMOVE NO. 4 ROOF SILENCER PAD (w/o Sliding Roof)


  1. Remove the No. 4 roof silencer pad from the roof headlining assembly.


    B270612



7. REMOVE NO. 2 ROOF SILENCER PAD (w/o Sliding Roof)


  1. Remove the 2 No. 2 roof silencer pads from the roof headlining assembly.


    B270786



8. REMOVE NO. 2 ROOF SILENCER PAD (w/ Sliding Roof)


  1. Remove the No. 2 roof silencer pad from the roof headlining assembly.


    B270788
