UPPER INSTRUMENT PANEL > REASSEMBLY

for Preparation Click here



1. INSTALL INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

  1. Engage the 3 hooks.

  1. Push the instrument panel passenger airbag assembly to engage the 3 hooks.

  1. Install the 2 screws to install the instrument panel passenger airbag assembly.



2. INSTALL NO. 2 INSTRUMENT PANEL WIRE

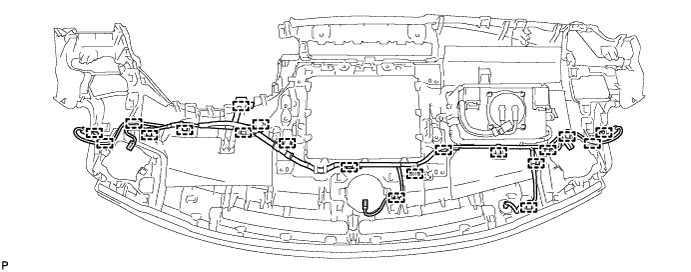

  1. Engage each clamp to install the No. 2 instrument panel wire.


    B269913



3. INSTALL NAVIGATION ANTENNA ASSEMBLY (w/ Navigation System)
for LHD:
for RHD:


4. INSTALL DEFROSTER NOZZLE ASSEMBLY


    B269911

  1. Install the defroster nozzle assembly with the 3 screws <B>.



5. INSTALL NO. 1 HEATER TO REGISTER DUCT SUB-ASSEMBLY


    B269909

  1. Engage the claw.

  1. Install the No. 1 heater to register duct sub-assembly with the 3 screws <B>.



6. INSTALL NO. 3 HEATER TO REGISTER DUCT SUB-ASSEMBLY

HINT:
Use the same procedure described for the No. 1 heater to register duct sub-assembly.



7. INSTALL NO. 1 DEFROSTER NOZZLE GARNISH

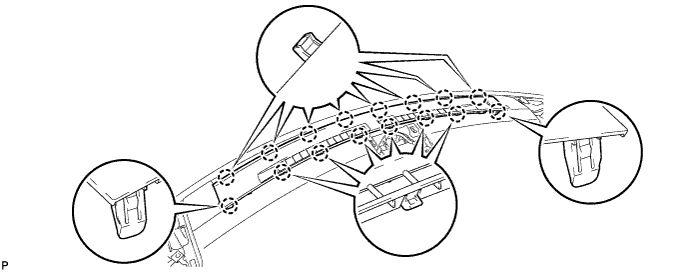

  1. Engage the 16 claws to install the No. 1 defroster nozzle garnish.


    B269976



8. INSTALL AUTOMATIC LIGHT CONTROL SENSOR


    E220384

  1. Engage the 2 claws to install the automatic light control sensor as shown in the illustration.

  1. Connect the connector.
